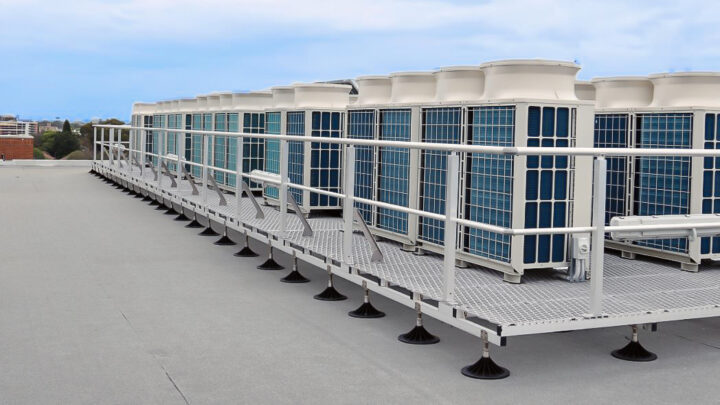

– Individually height adjustable bases for flat roofs and multi-fall shallow gradients; consisting of 304 stainless steel base with a plastic outer shell, rubber anti-vibration pad & a stainless steel convex stub and concave disc to allow for the drainage contours of the roof
– Free standing design eliminates penetrations preserving the roof membrane.
– Unique load-sharing design distributes the load evenly, minimising point loads and reducing the structural requirements of the roof.
– All aluminium components with stainless steel fixings.
– Live load rated to 2.5 kPa
– Super lightweight 18kg/m2
– Backed by 20yr warranty
– Complies to BS EN 516 2006 and BS EN 1090-3 2008
– A1 fire rated (framing) B2 fire rated (support feet)
– Penetration free making placement and position on the roof flexible.
– There is 100mm of vertical height adjustment in each base to allow the platform to be levelled across the drainage contours of the roof.
– Configurable in 600mm increment sizes in width and length to suit your requirements.
– Pitch is configurable to suit the roof requirement.
– The lightweight aluminium design makes it easy for carrying, craning and assembly.
– Modular, pre-engineered system allows for fast turnaround design, manufacture & installation
– Kit form allows Series 2 to be assembled by a trade already on site with our easy to follow installation manual.
– Take advantage of our approved installer network for an efficient and stress-free installation.

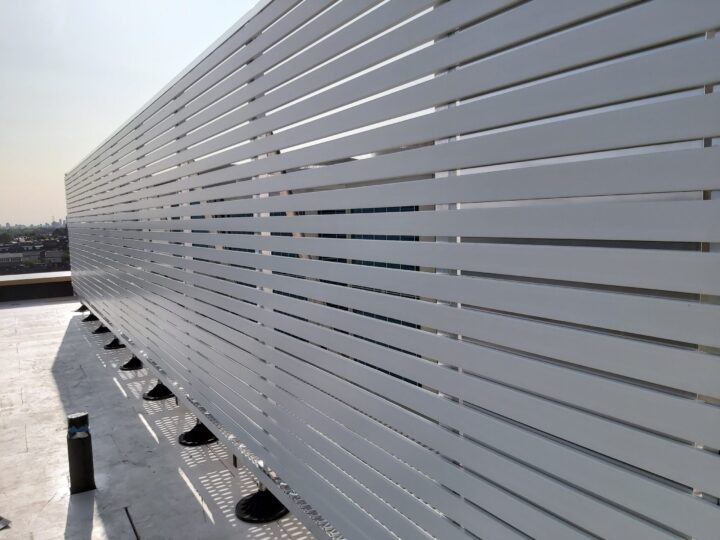

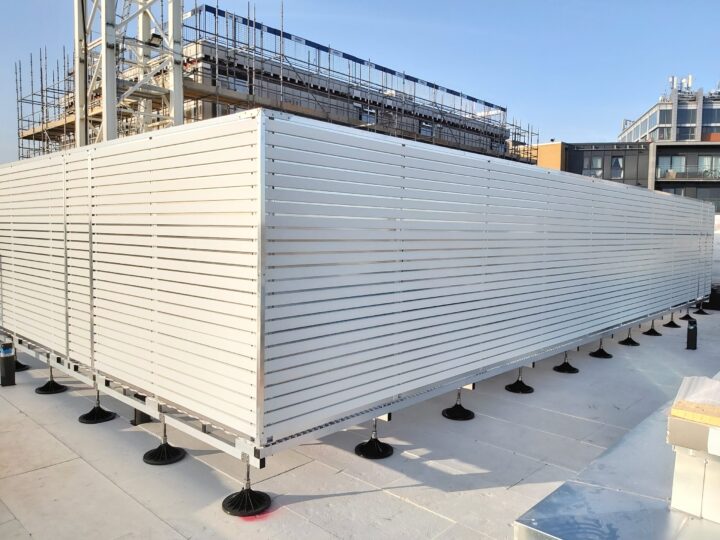

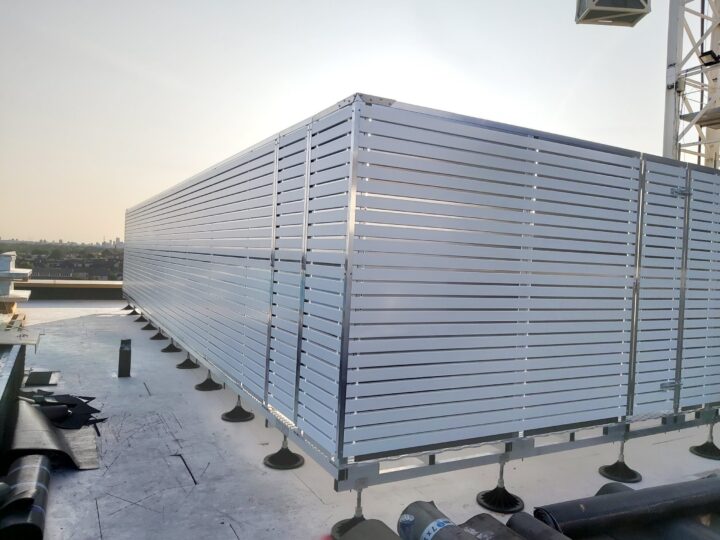

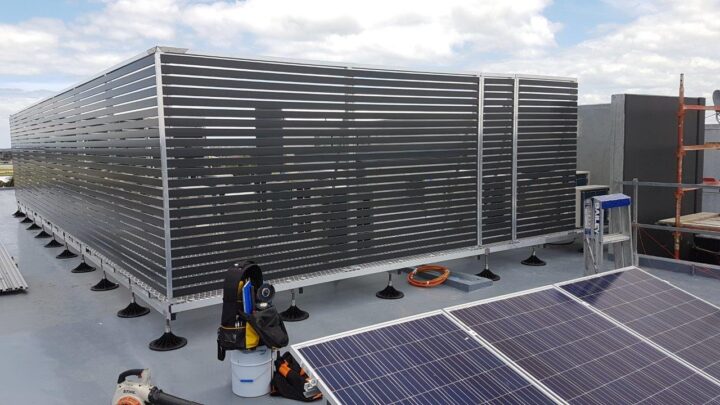

Series 2 platforms seamlessly integrate with our Surrounds and Acoustics products.
