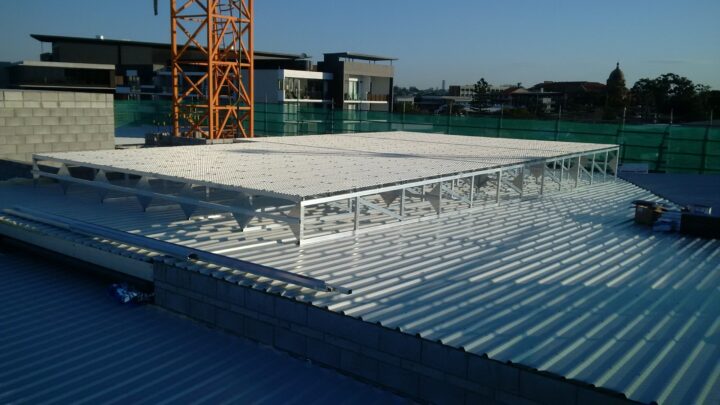

– Extra height increases air-flow to improve equipment’s performance and longevity.
– Unique load-sharing design distributes the load evenly, minimising point loads and reducing the structural requirements of the roof.
– Compatible with steep pitched roofs and saw-toothed roofs.

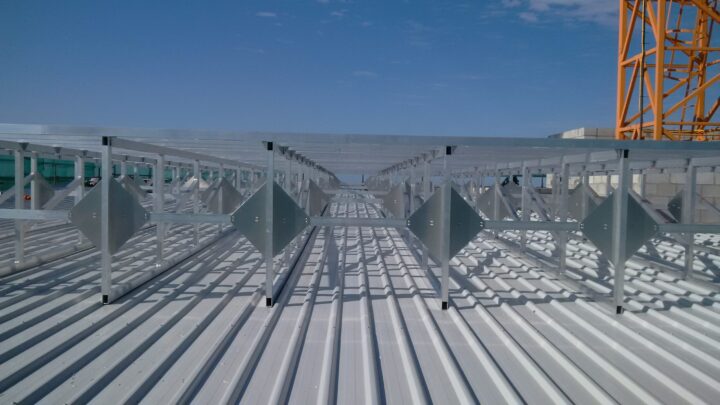

– Added height allows for easy access below the platform for routine inspections & maintenance; as well as easy integration of equipment with vertical discharge ducts.
– All aluminium components with stainless steel fixings.
– Live load rated to 2.5 kPa
– Lightweight 20kg/m2
– Backed by 20yr warranty
– Complies to BS EN 516 2006 and BS EN 1090-3 2008
– A1 fire rated
– Penetration free making placement and position on the roof flexible.
– Configurable in 600mm increment sizes in width and length to suit your requirements.
– Pitch is configurable to suit the roof requirement.
– The lightweight aluminium design makes it easy for carrying, craning and assembly.
– Modular, pre-engineered system allows for fast turnaround design, manufacture & installation
– Kit form allows Series 3 to be assembled by a trade already on site with our easy to follow installation manual.
– Take advantage of our approved installer network for an efficient and stress-free installation.
The product is supplied with either Neoprene Foam Rubber Tape or VHB Foam Tape applied to the underside of the frame depending on whether the system is to be adhered to the roof surface or not.

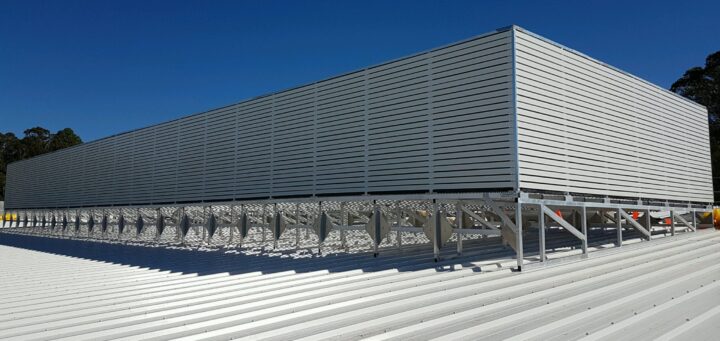

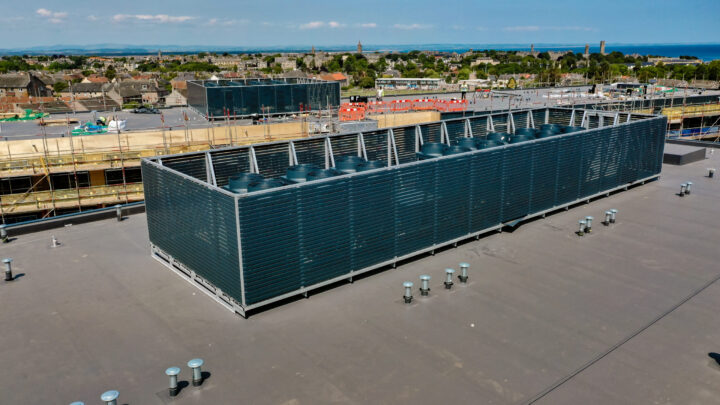

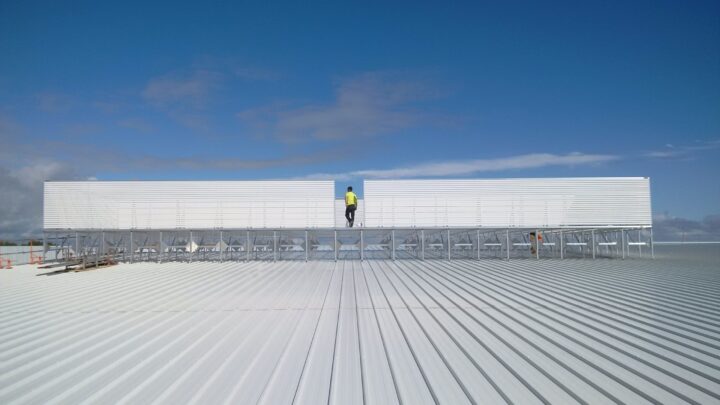

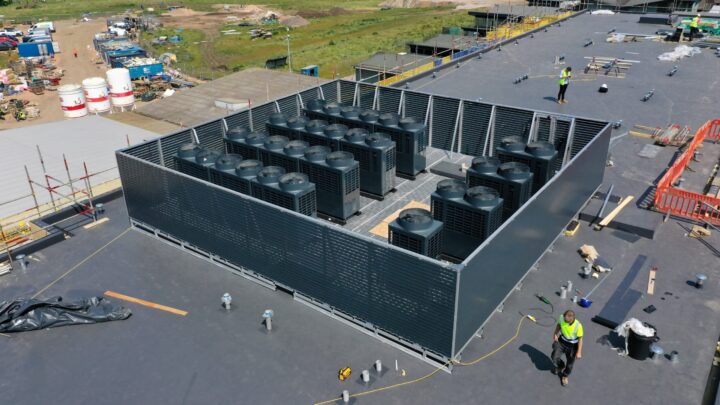

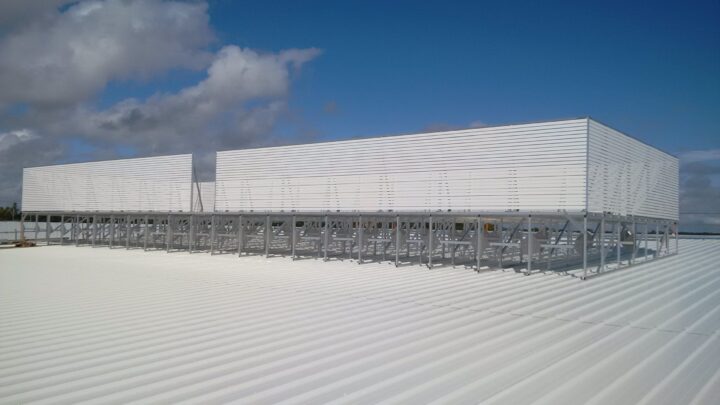

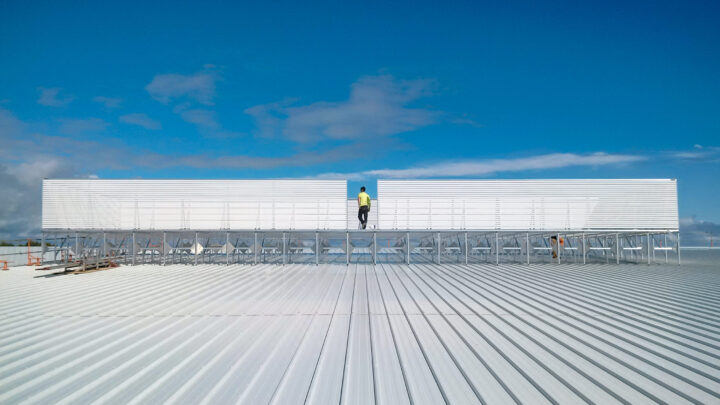

Series 3 platforms seamlessly integrate with our Surrounds and Acoustics products.
