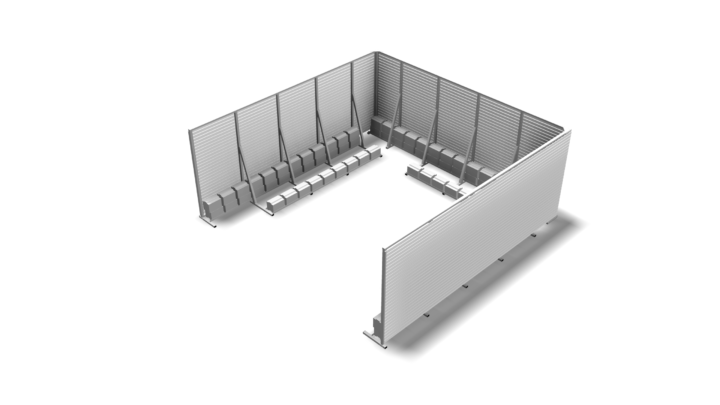

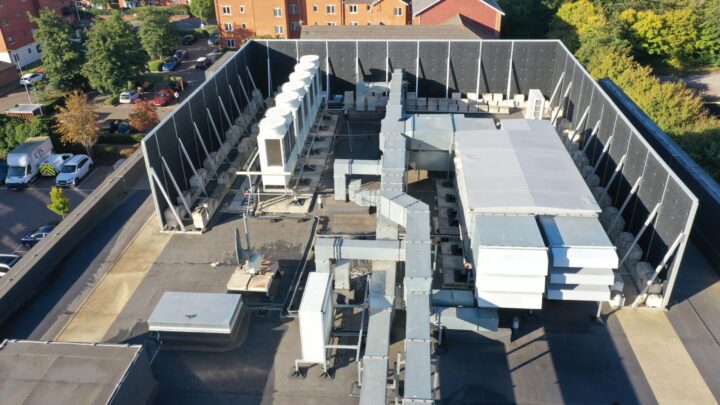

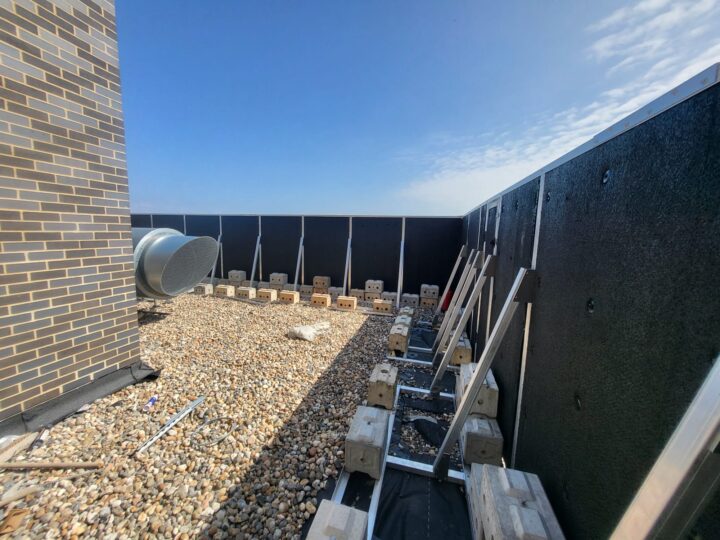

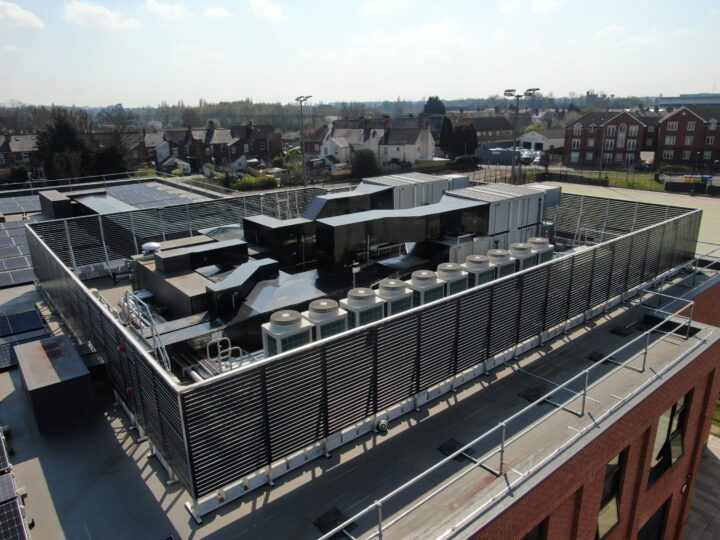

– Screen system not relying on fixing points, structural connection to the building, or and penetration through the roof membrane.
– Incorporates our range of surround and acoustic types.

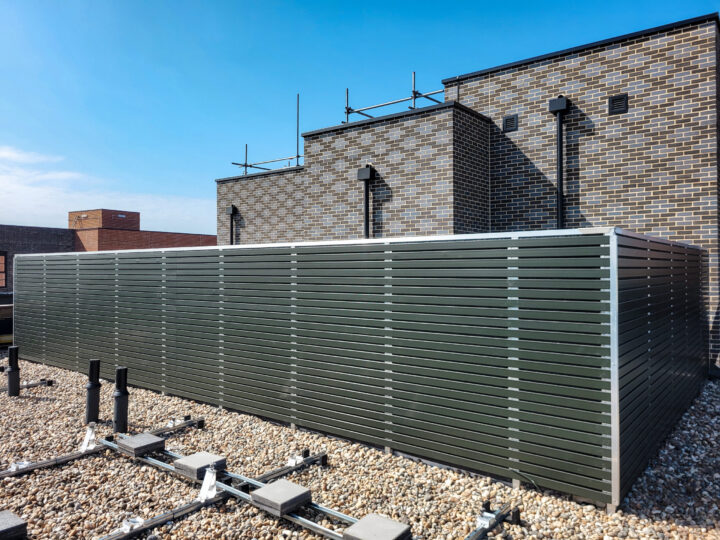

– Suitable for flat roof or shallow gradient applications.

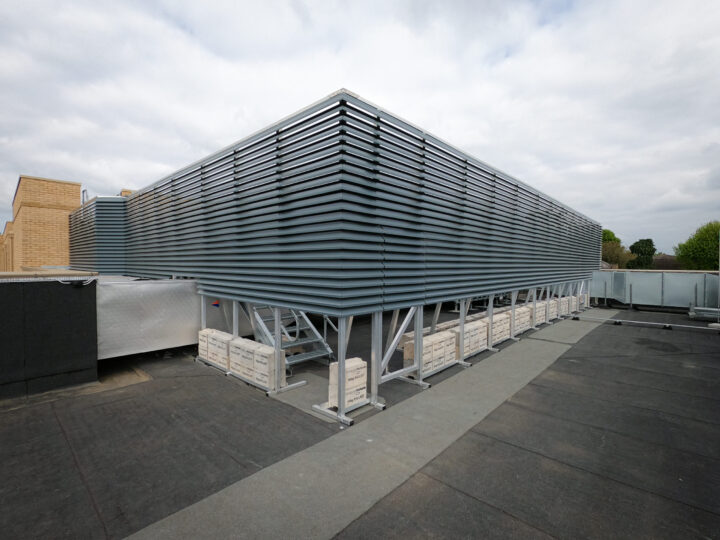

– Complements our plant platform range perfectly and can be integrated so that our screens are continuous regardless of whether it is mounted on a platform or on the Speedscreen system.

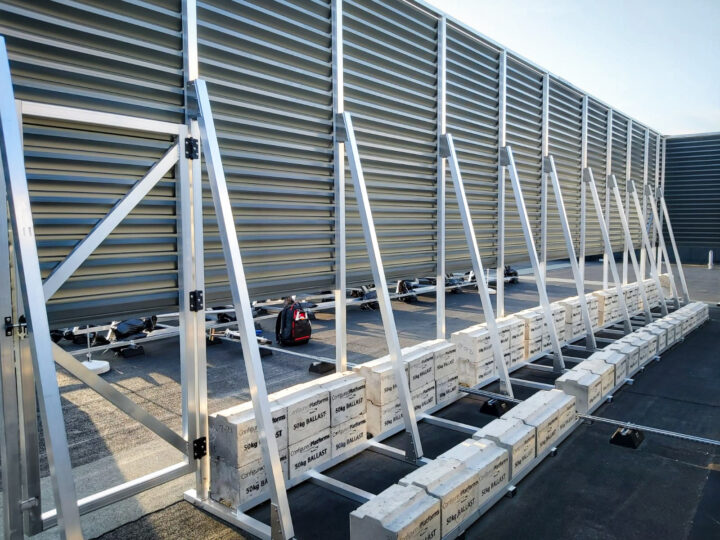

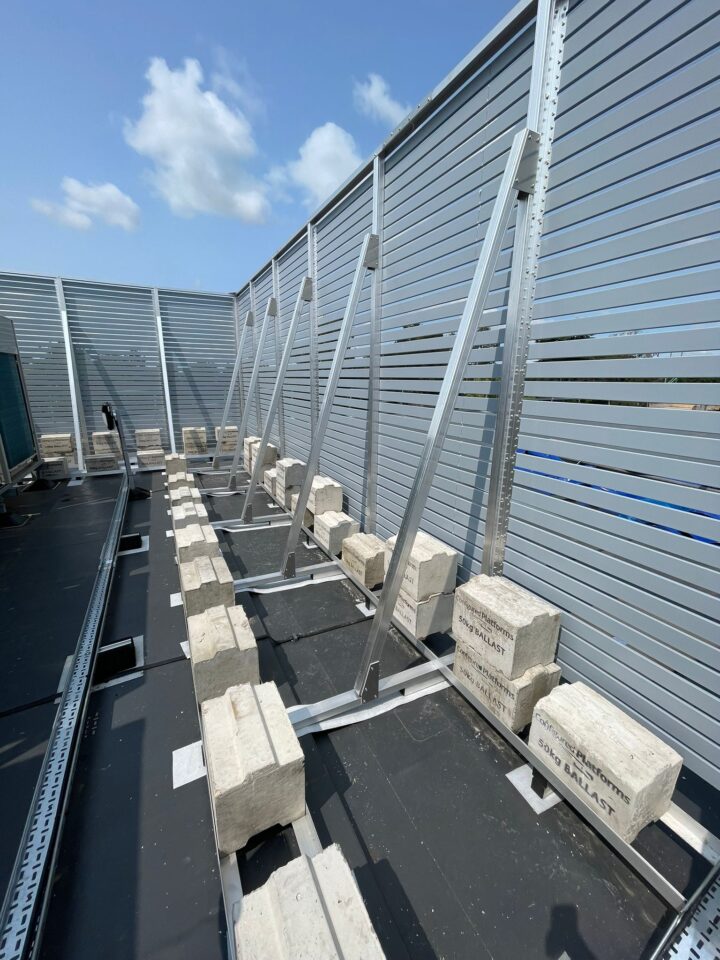

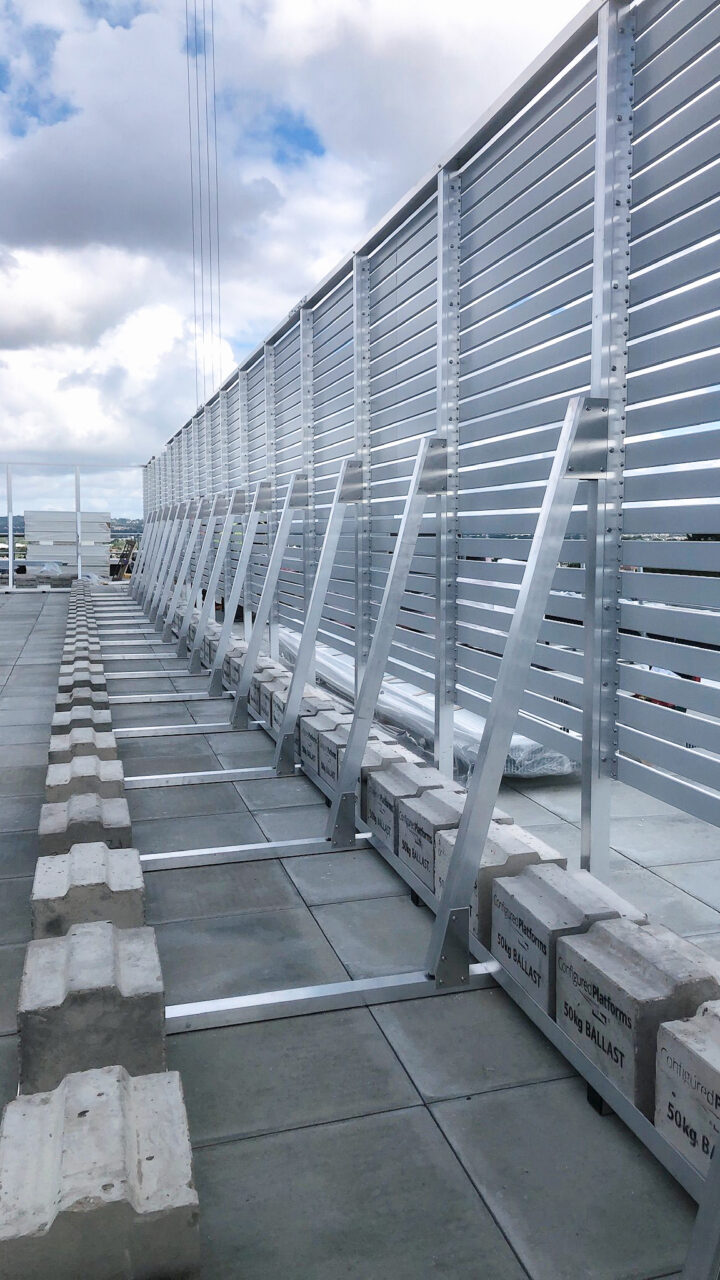

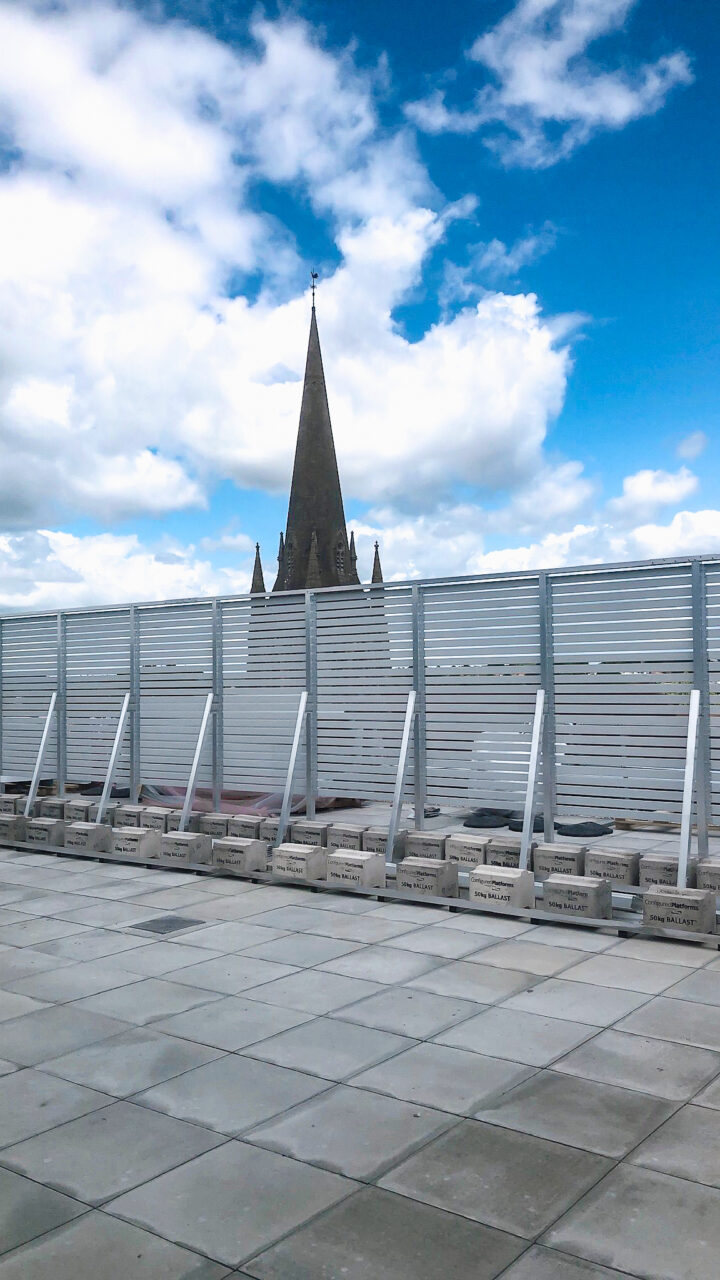

– Ballast weight values are calculated in relation to four factors: terrain category, area wind velocity according to EuroCode 1, building height and screen height.
– All aluminium components with stainless steel fixings.
– Backed by 20yr warranty
– Designed according to EN 1991-1-4:2005+A1:2010 Section 7.4.1 and complies to BS EN 516 2006 and BS EN 1090-3 2008
– A1 fire rated
– Modular, pre-engineered system allows for fast turnaround design, manufacture & installation
– Kit form allows Speedscreen to be assembled by a trade already on site with our easy to follow installation manual.
– Take advantage of our approved installer network for an efficient and stress-free installation.
– Penetration free making placement and position on the roof flexible.
– Configurable in 600mm increment sizes in width and length to suit your requirements.
– The lightweight aluminium design makes it easy for carrying, craning and assembly.
The product is supplied with either Neoprene Foam Rubber Tape or VHB Foam Tape applied to the underside of the frame depending on whether the system is to be adhered to the roof surface or not.
Speedscreen seamlessly integrates with our Surrounds and Acoustics products.
