About the project
Design

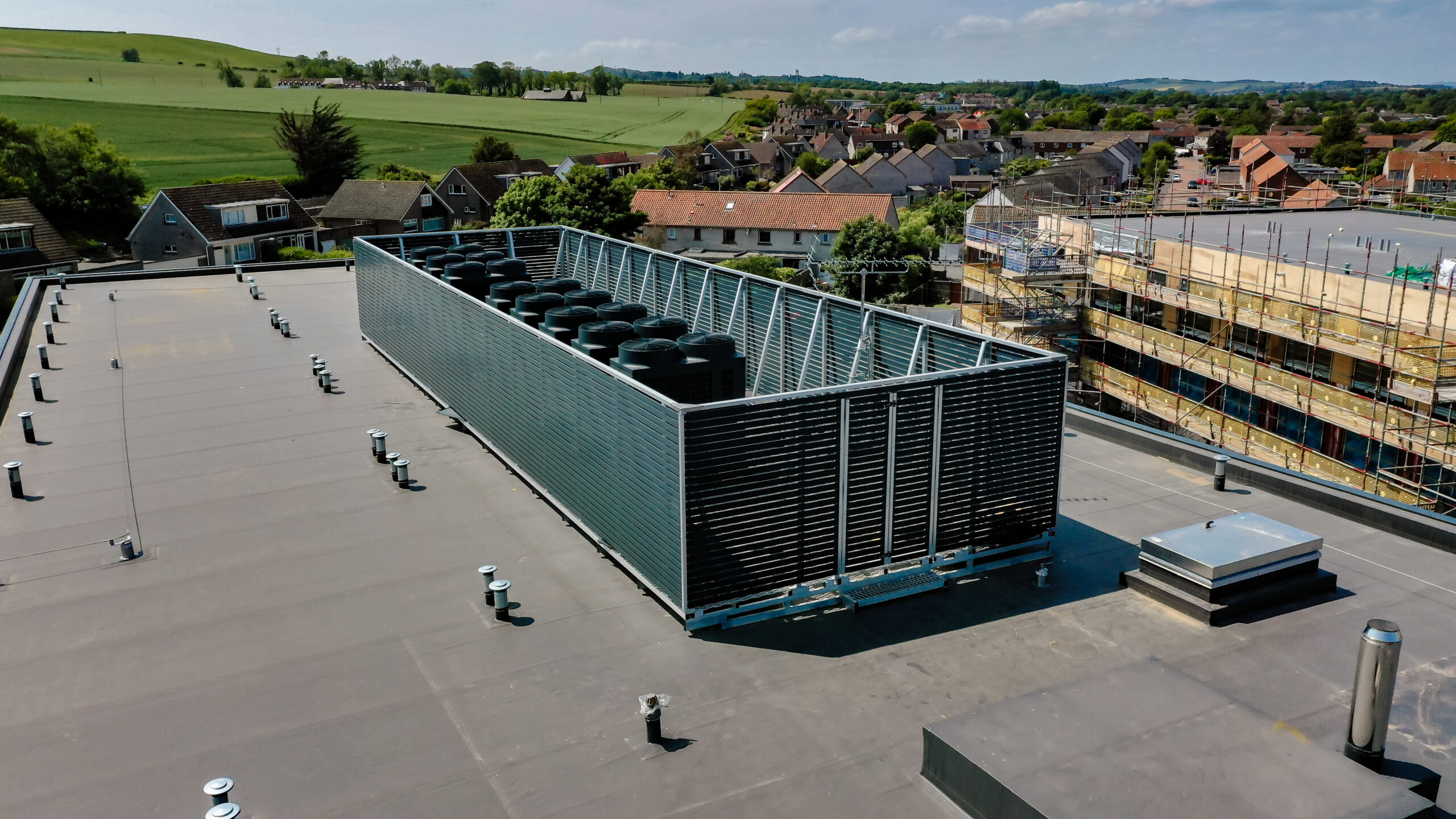

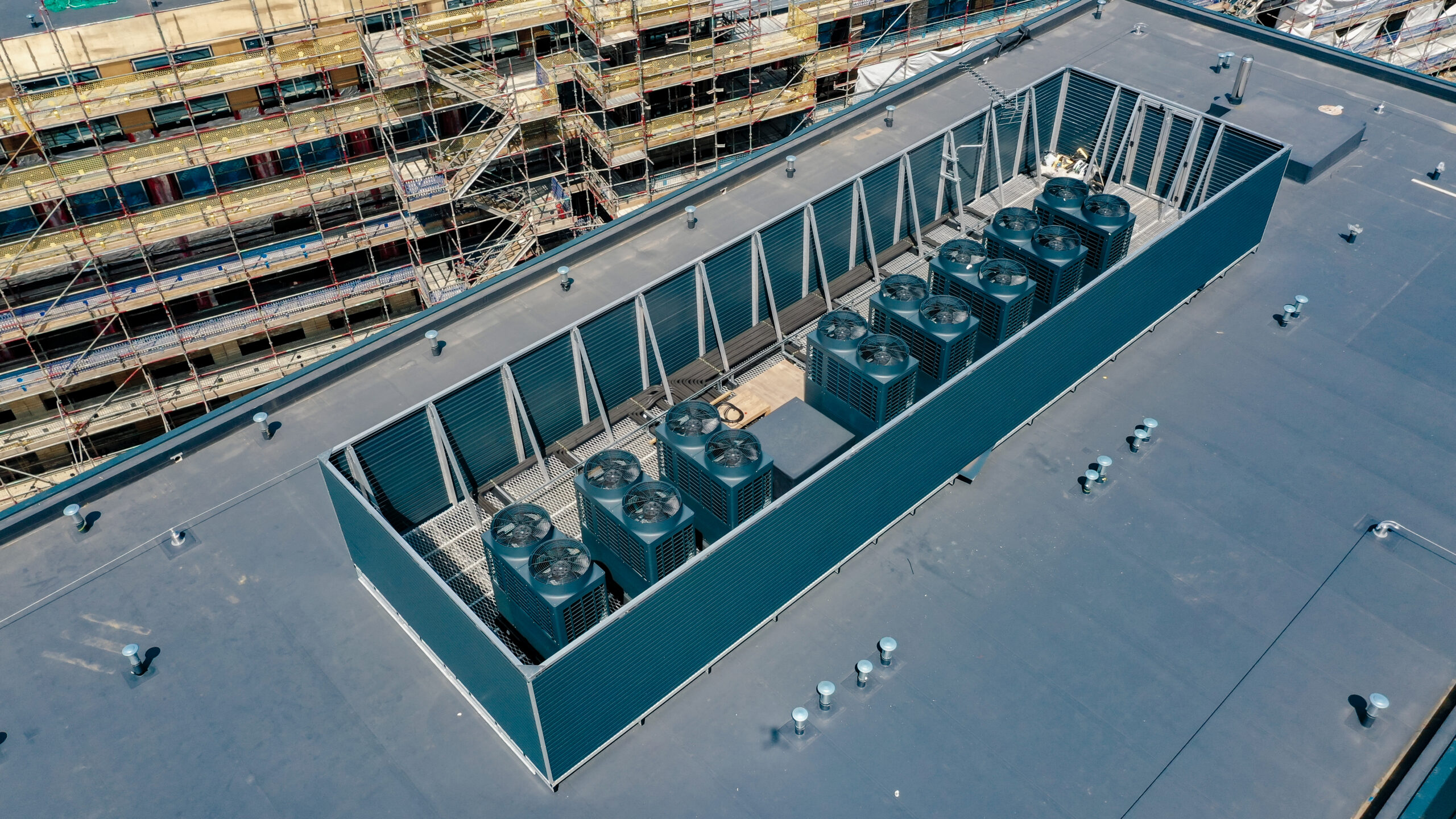

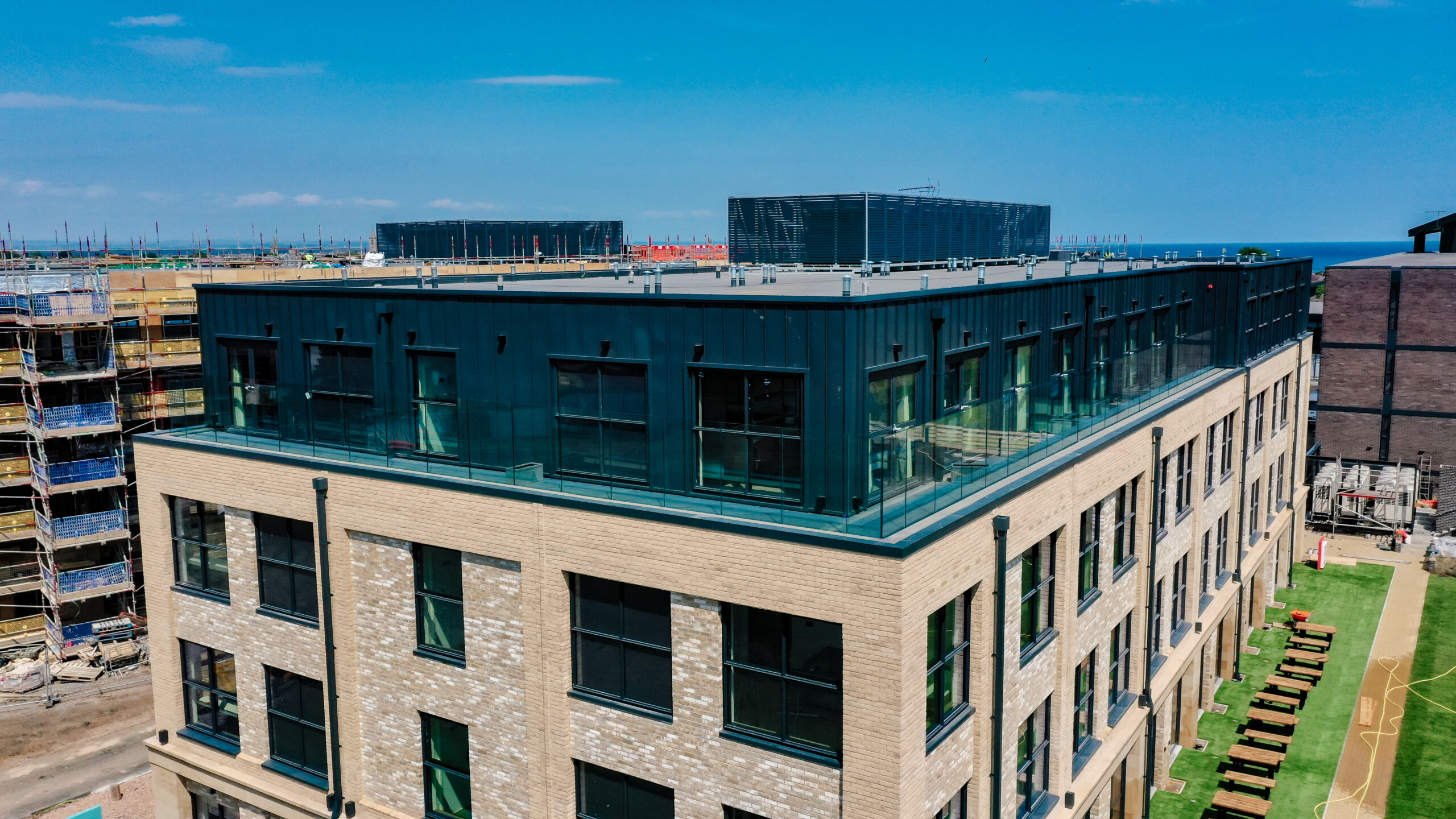

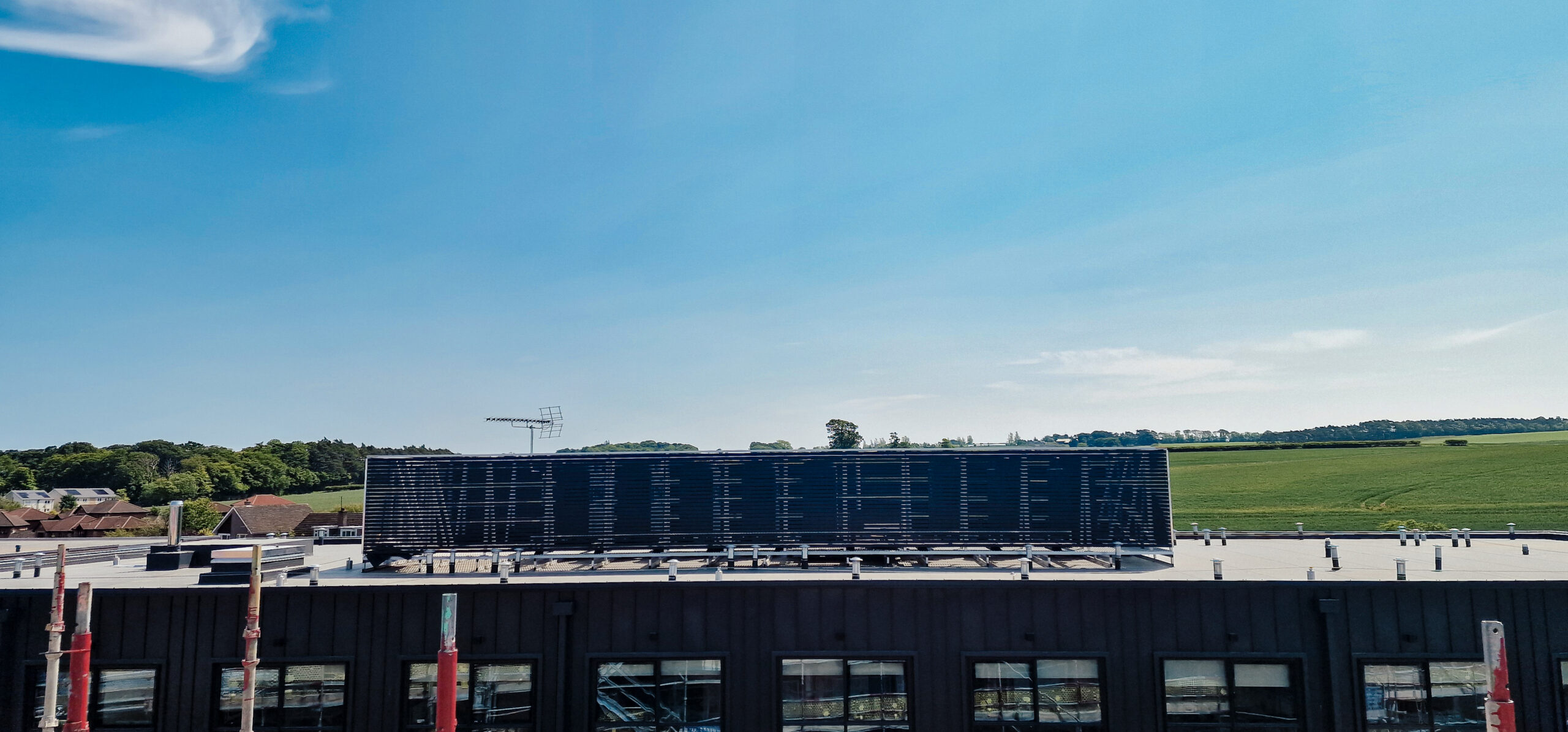

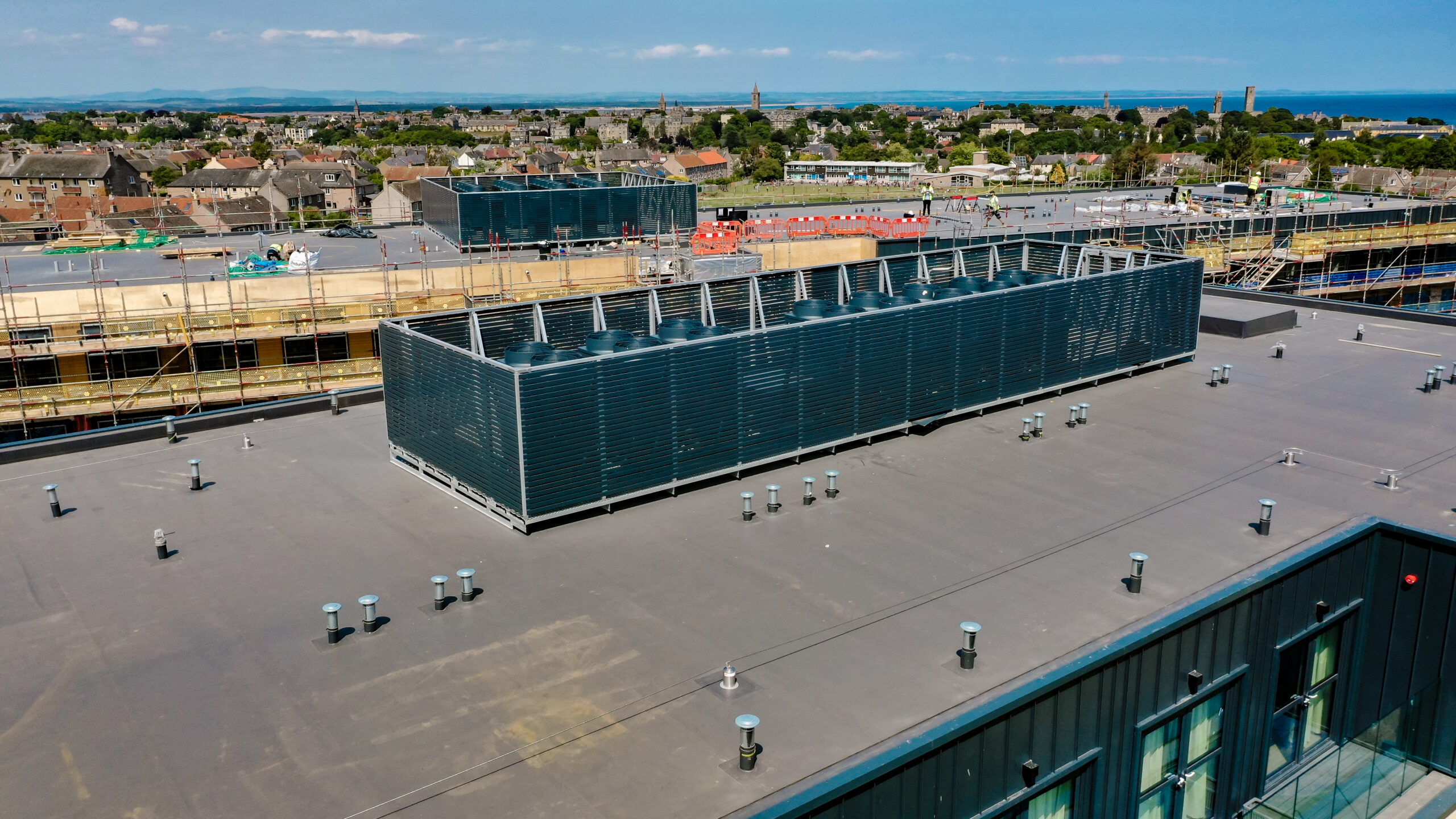

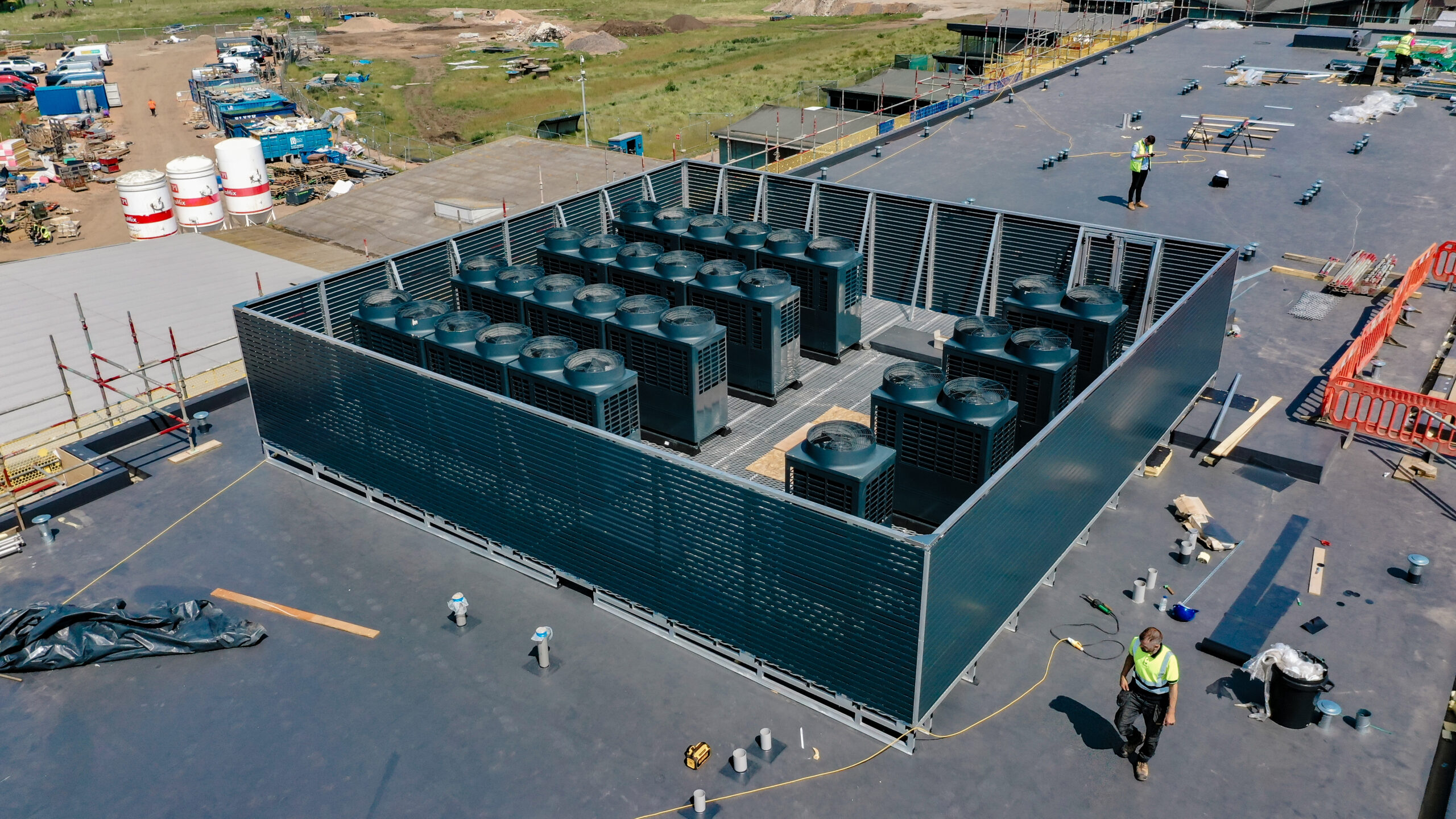

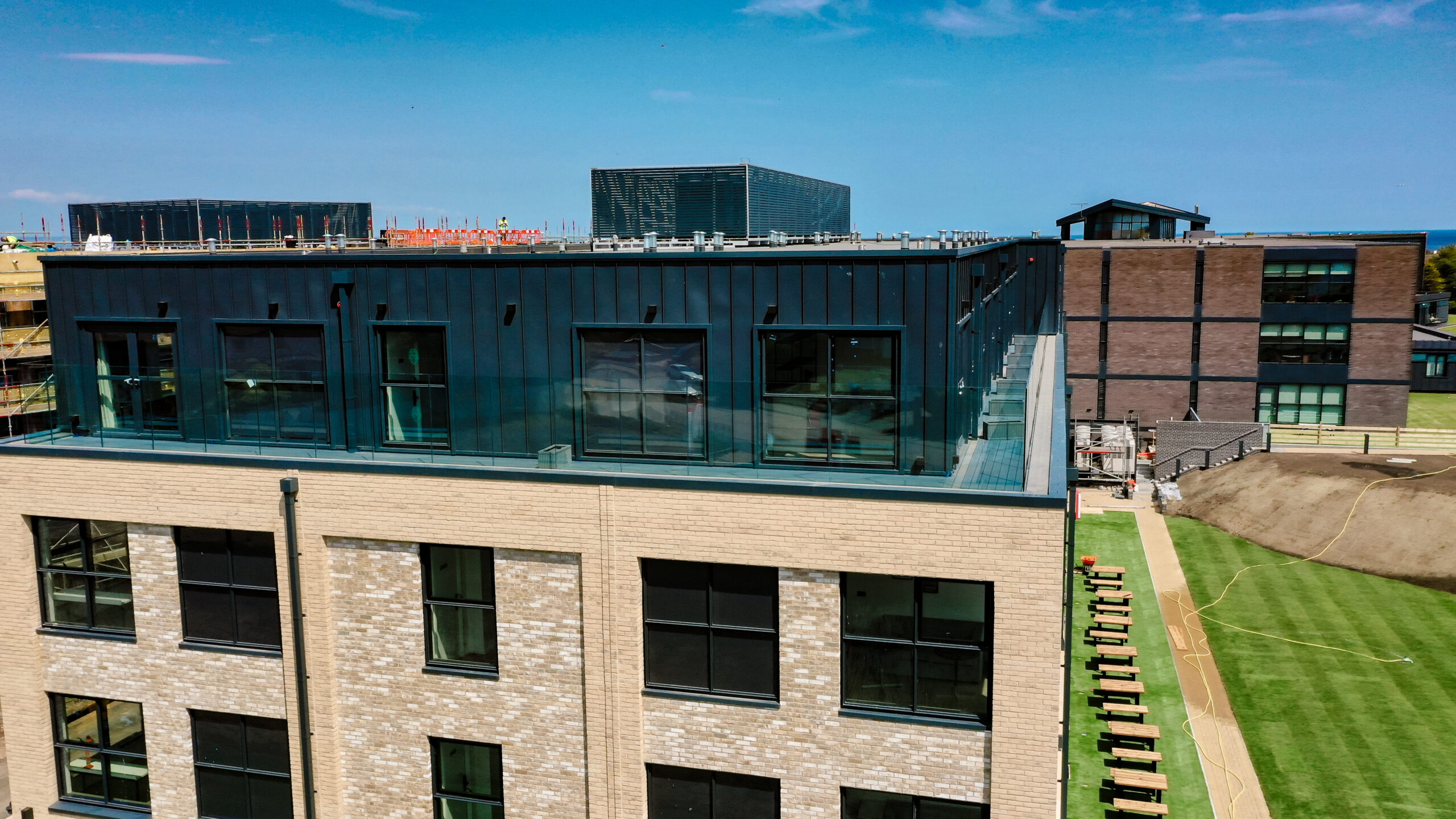

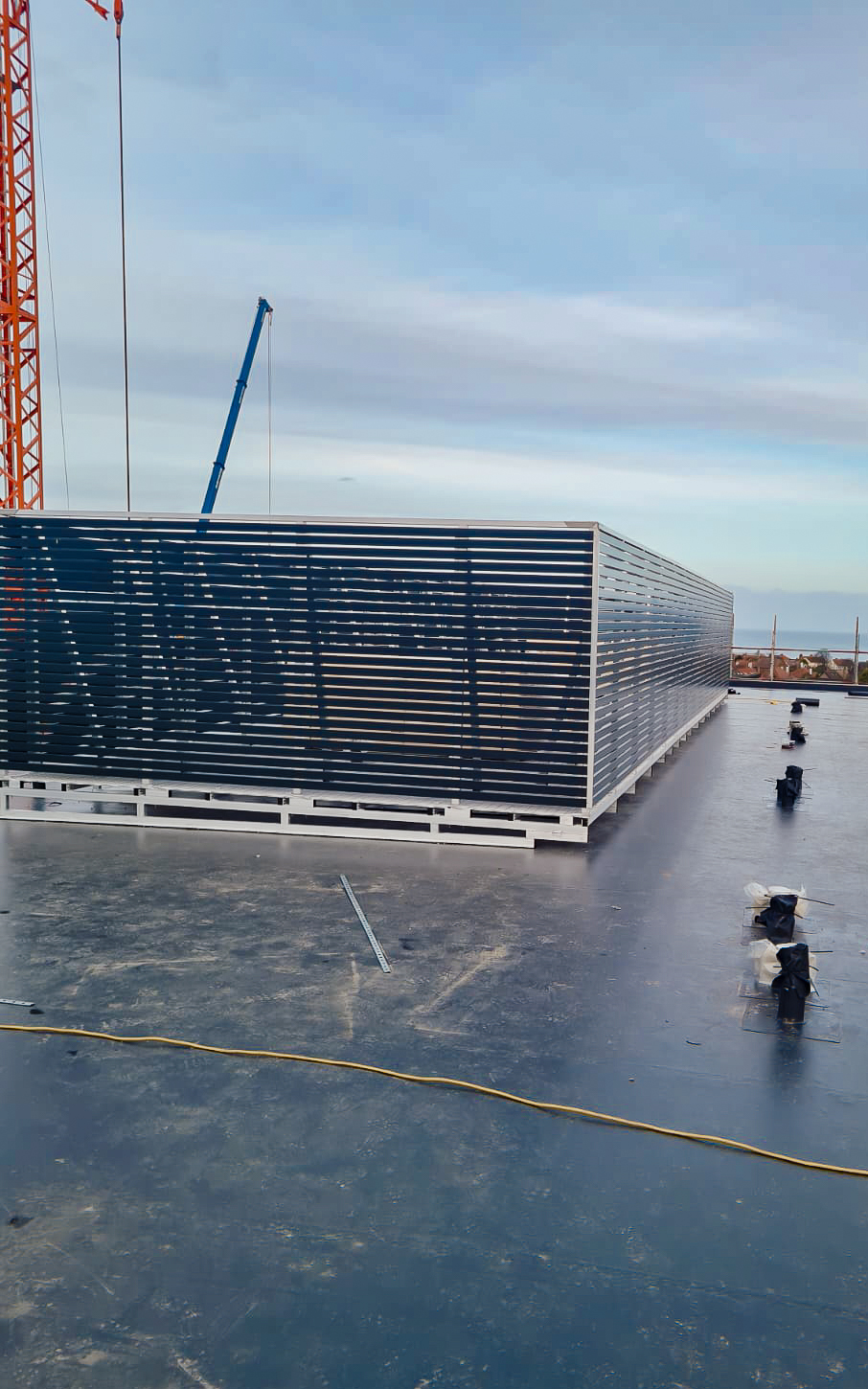

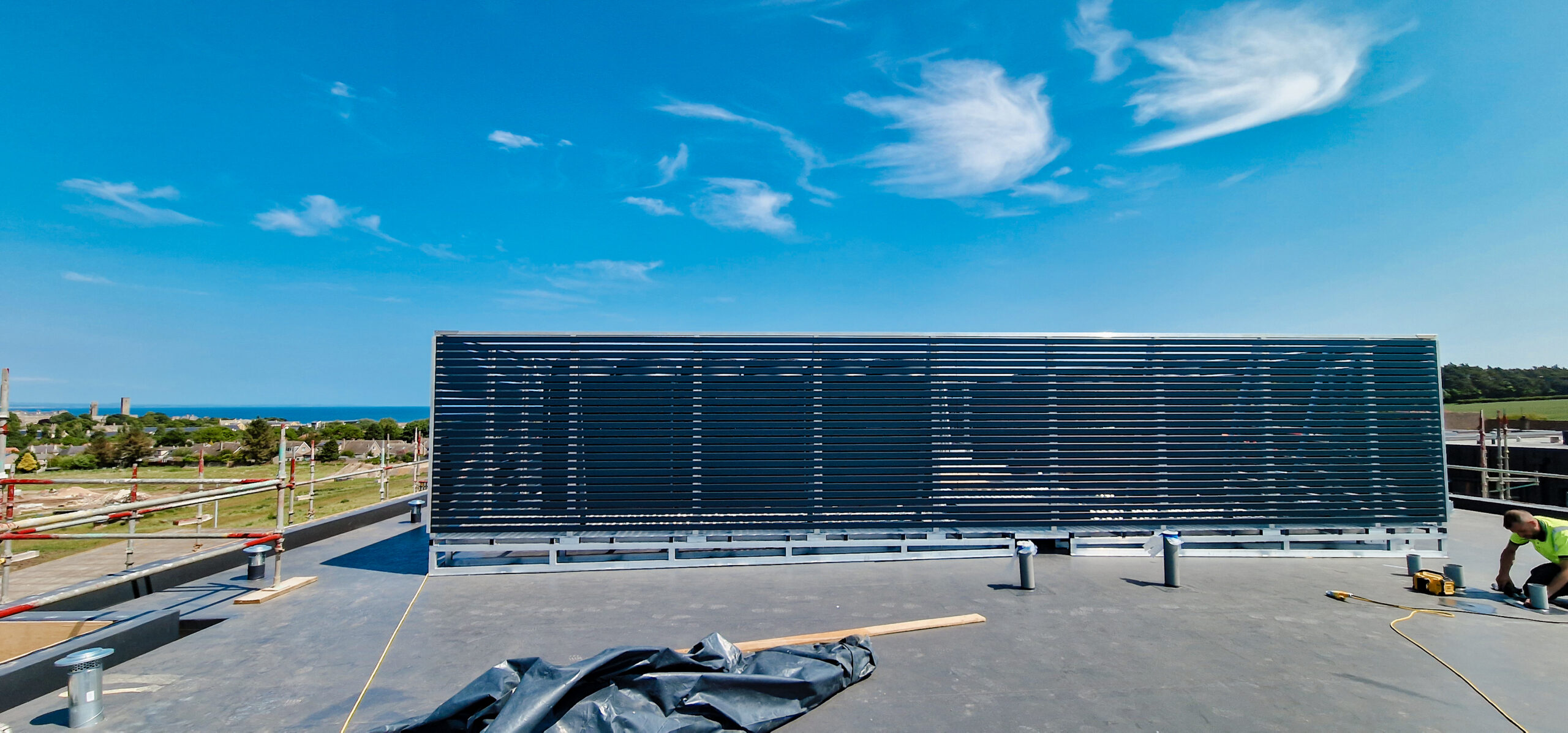

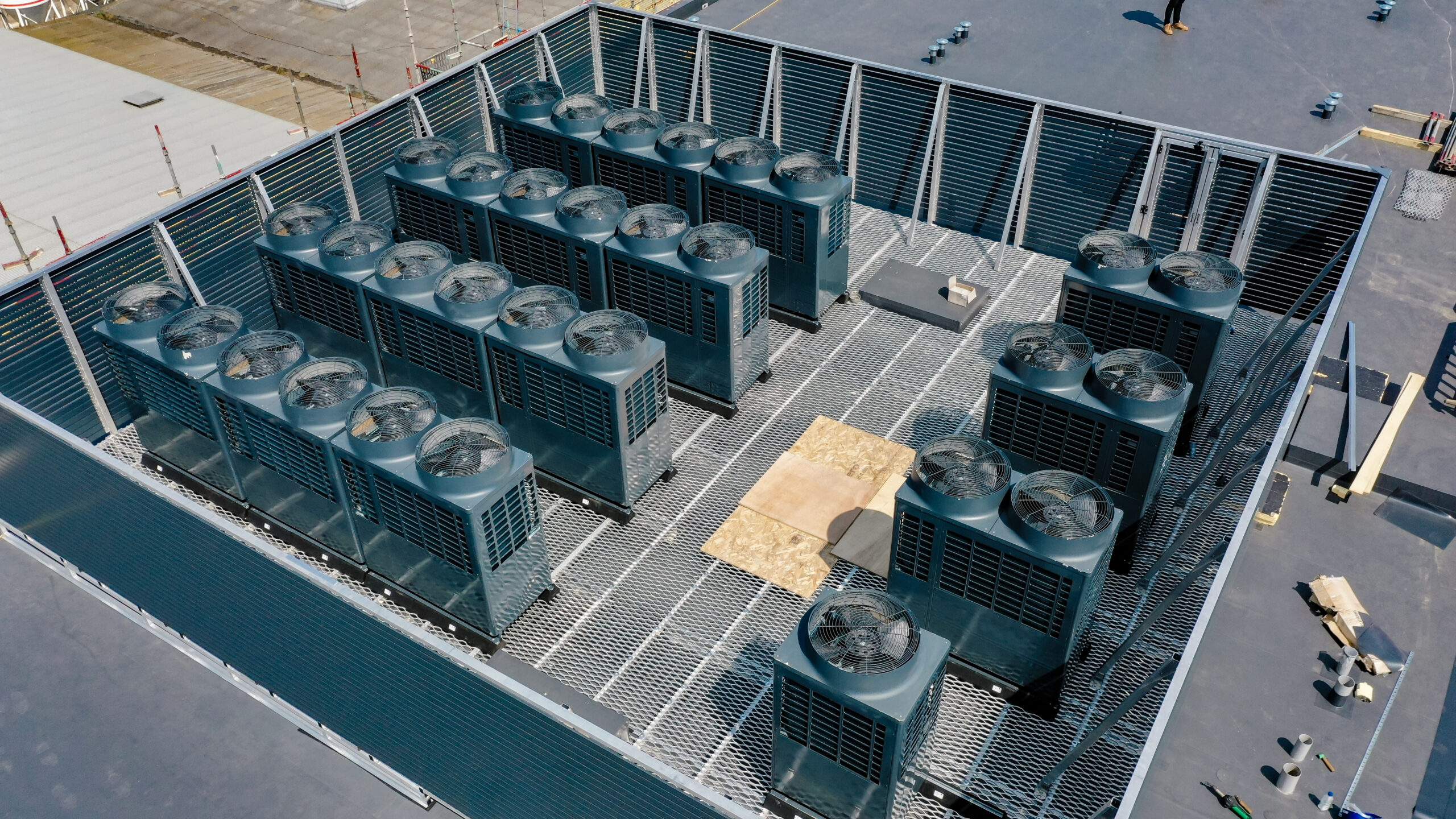

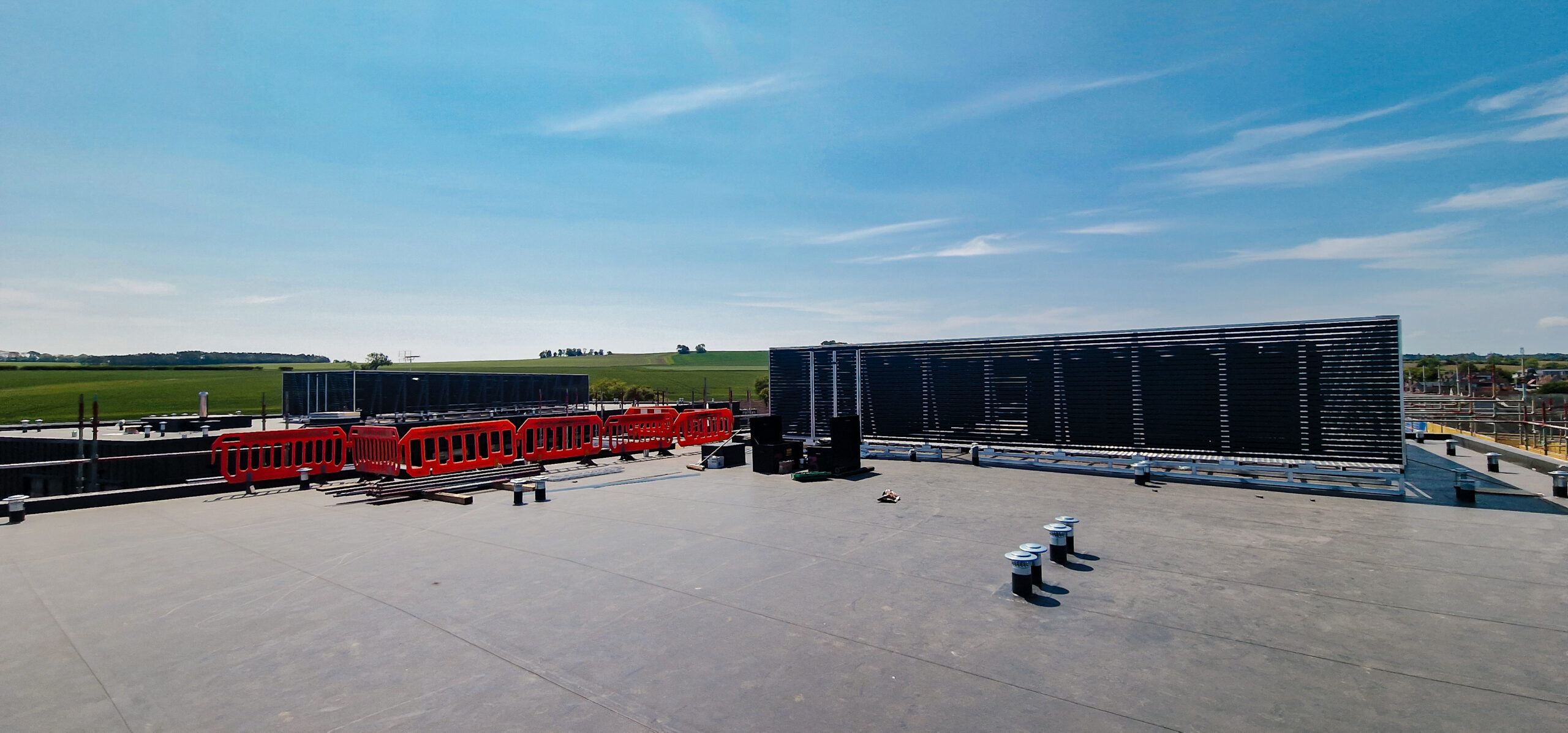

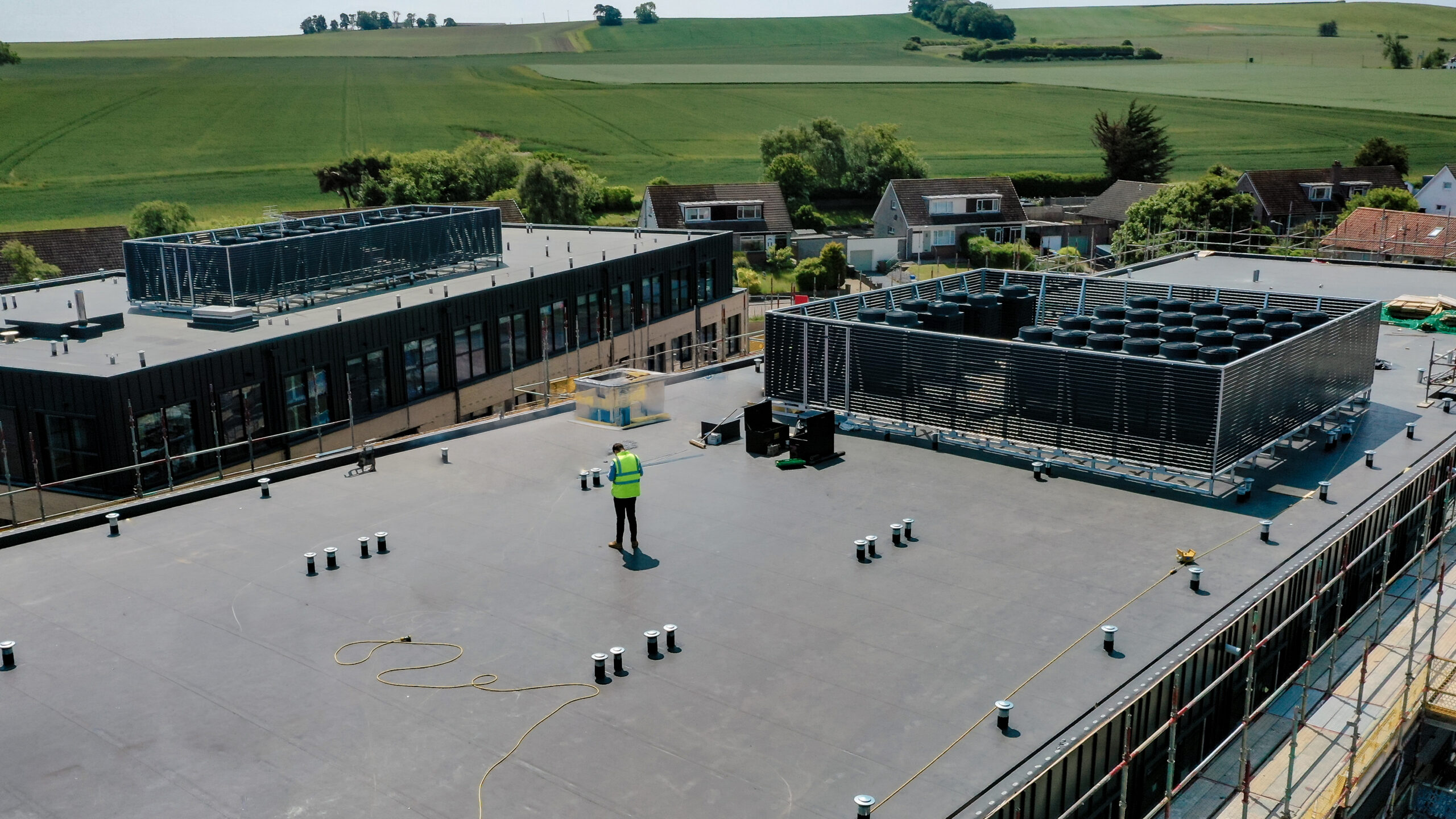

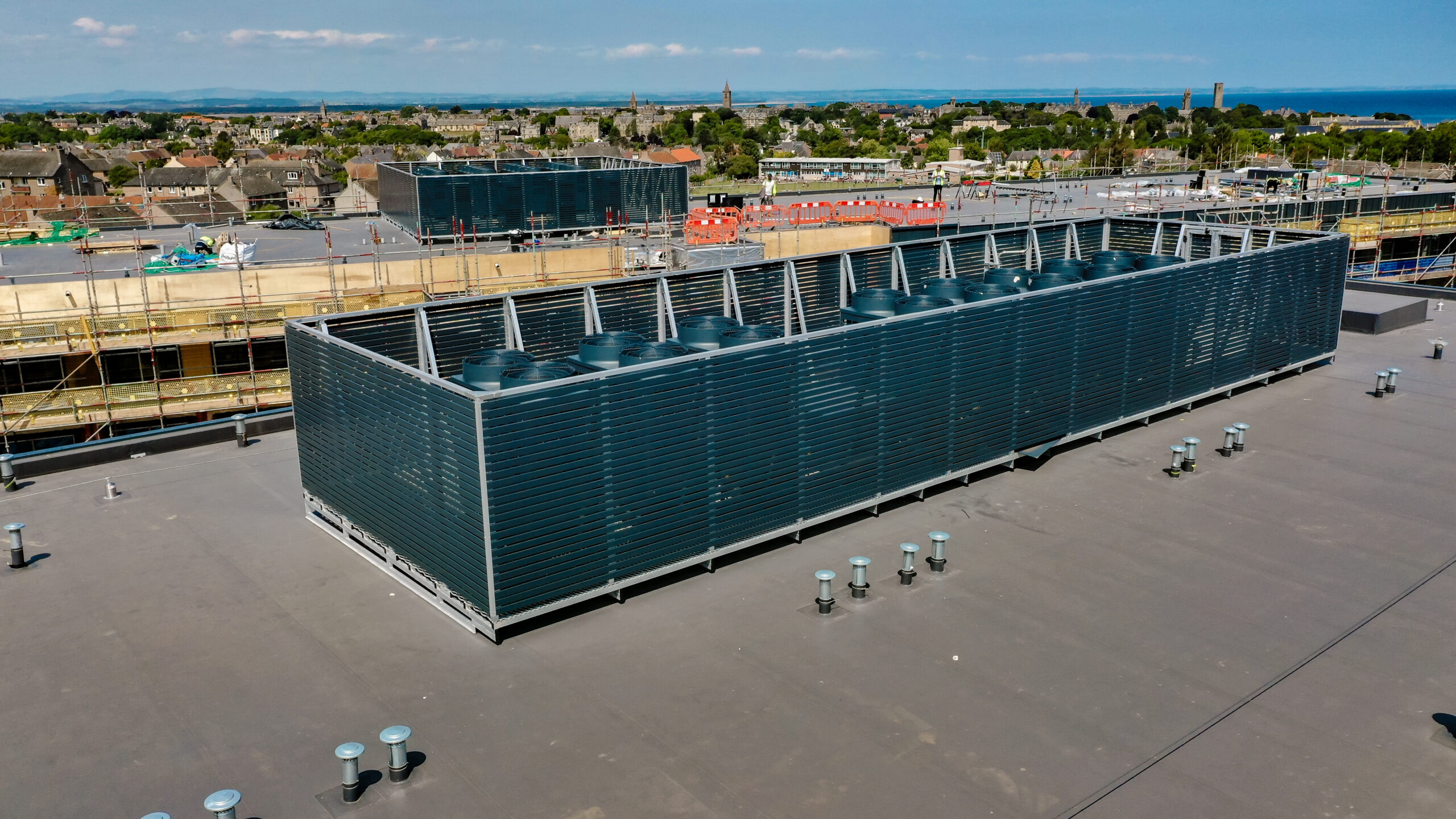

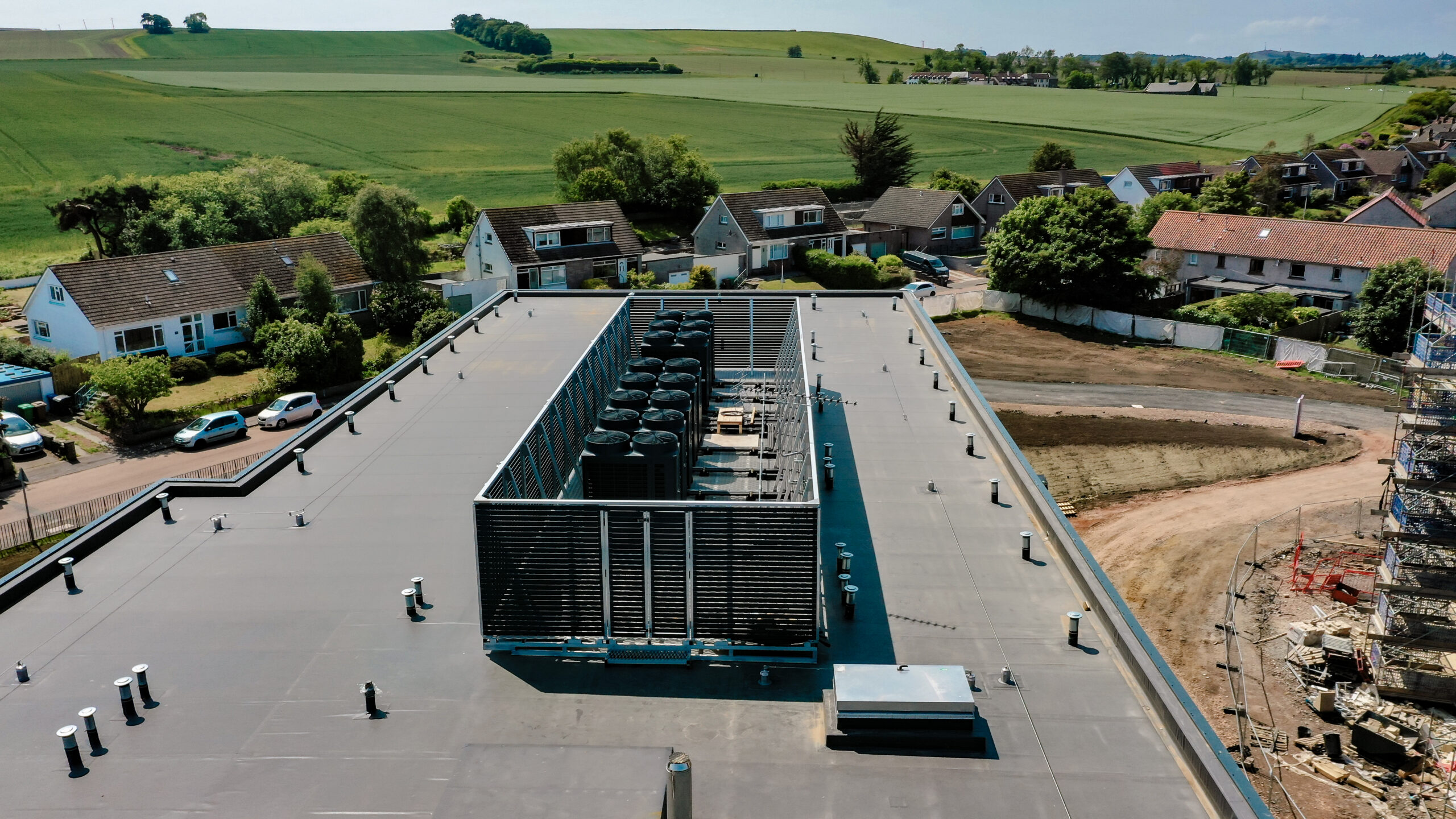

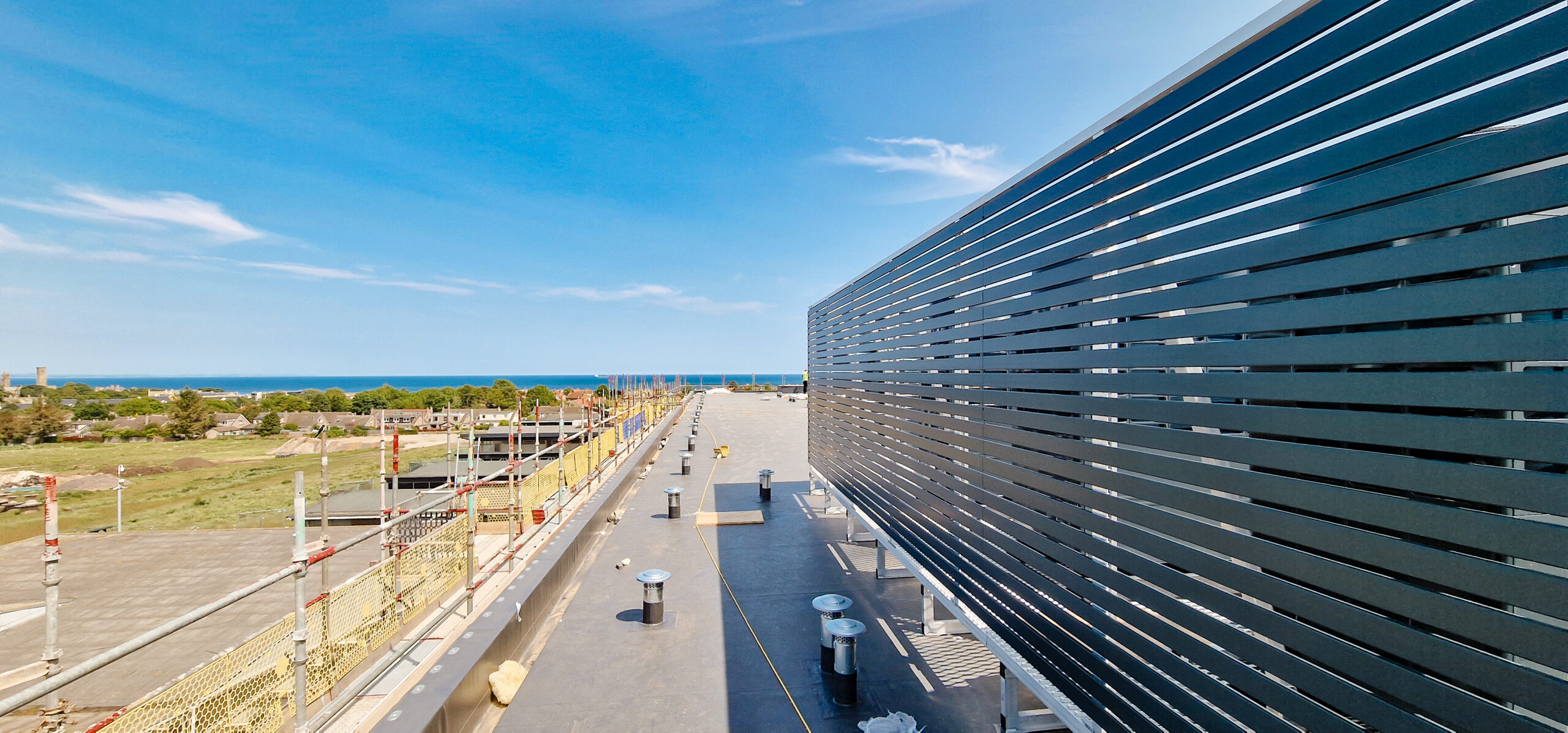

This solution enabled the contractor to fully complete the building structure and finish the roof without delays or the need for secondary steelwork to be craned in. Unlike traditional methods that require roof penetrations or complex structural integration, our freestanding, all-aluminium platform system supports HVAC equipment independently. The continuous perimeter screens provided a clean, uniform aesthetic while effectively concealing the rooftop units on both buildings.
Key features
– Series 3 platform rooftop mounting solution
– Integrated spreader plates to mitigate any risk of point loading onto the roof surface

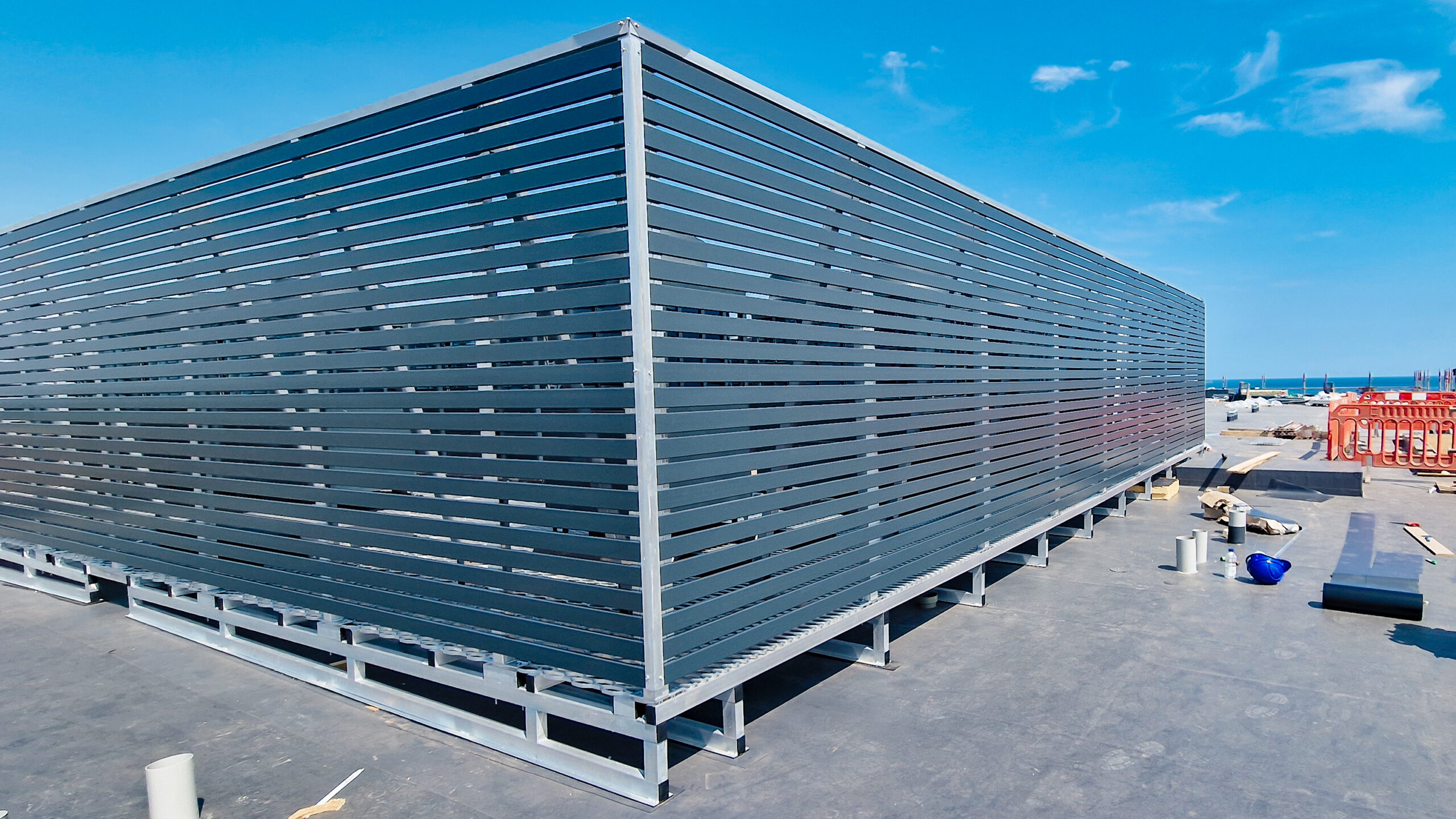

– Standard Screen slatted finish, Marine Grade PPC to suit the coastal environment, and to visually conceal the plant equipment
– Conforms to BS EN 516 2006 and BS EN 1090-3 2008
Installation
The entire installation was completed by the Zenit Construction team in just a week, thanks largely to the modular design of the system, and the easy to follow, assembly instruction manuals, provided with the kit. The prefabricated components were manufactured offsite in our factory in Leeds and delivered to site, ready for rapid assembly, significantly reducing onsite construction time and labour requirements. This modular approach not only streamlined the installation process but also minimised disruption to ongoing site operations. The result is a fully functional, pre-engineered, rooftop solution that delivers on structural integrity, operational efficiency, and environmental performance, all within a remarkably short project timeline.
