About the project
Design

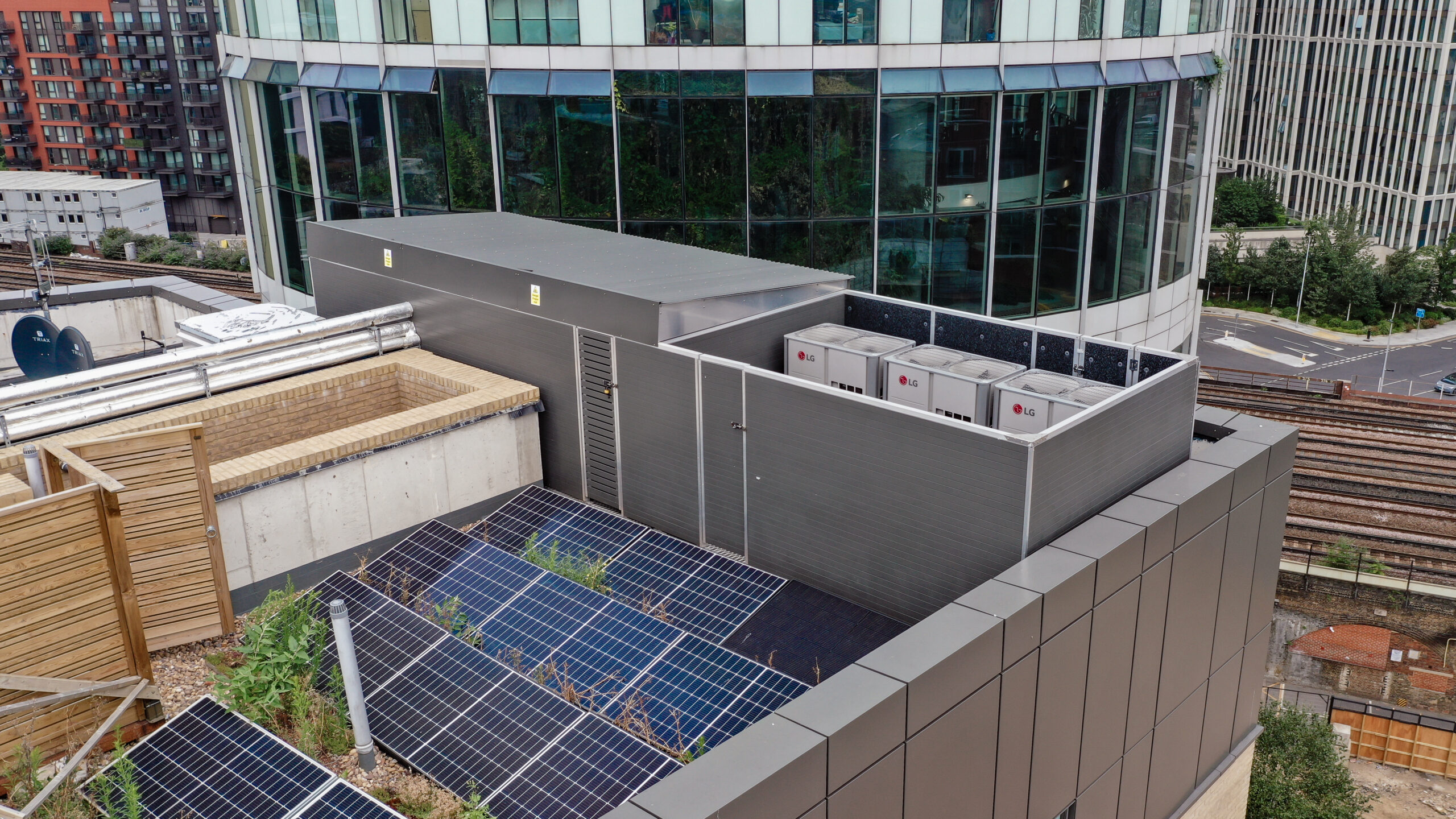

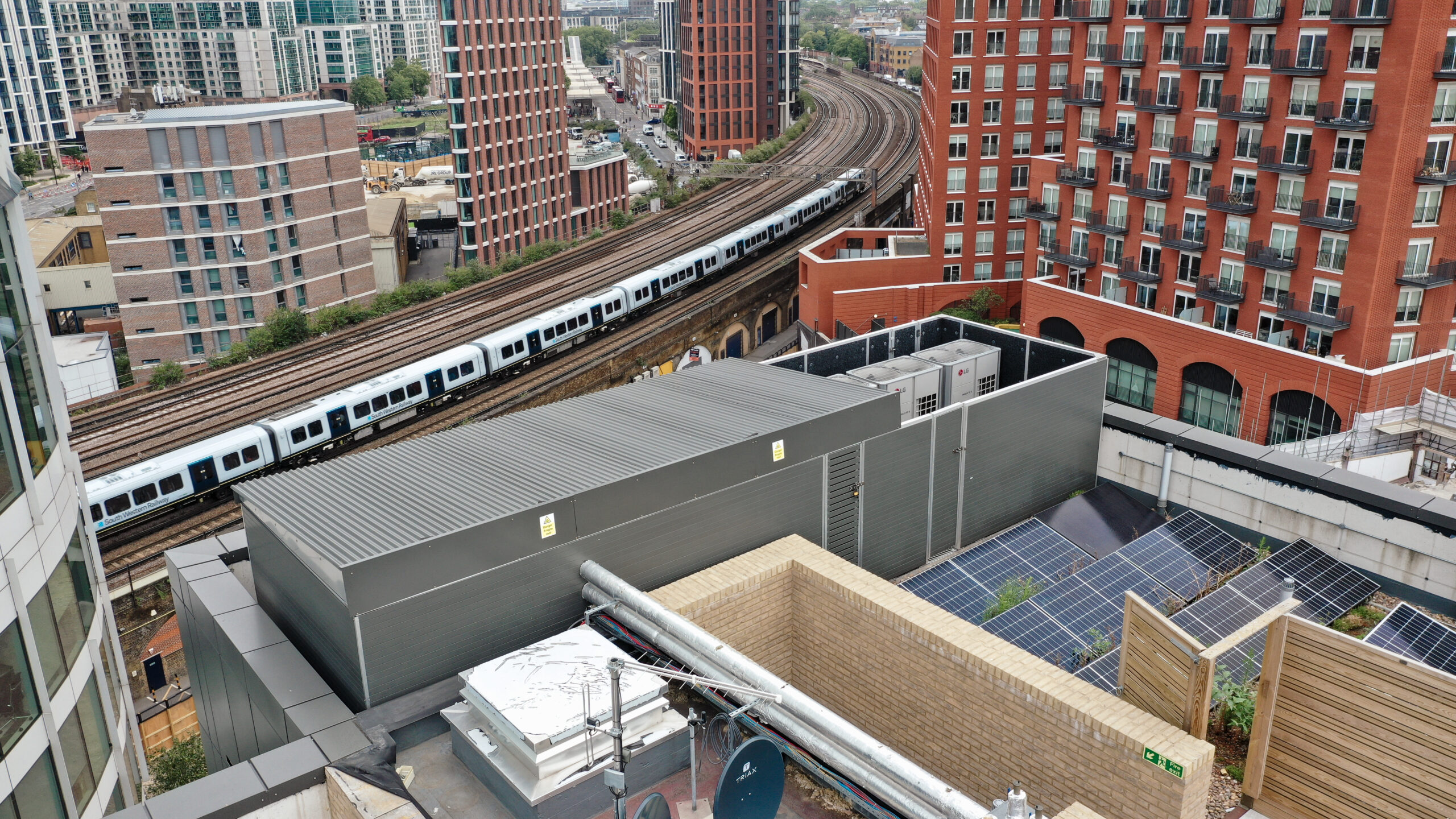

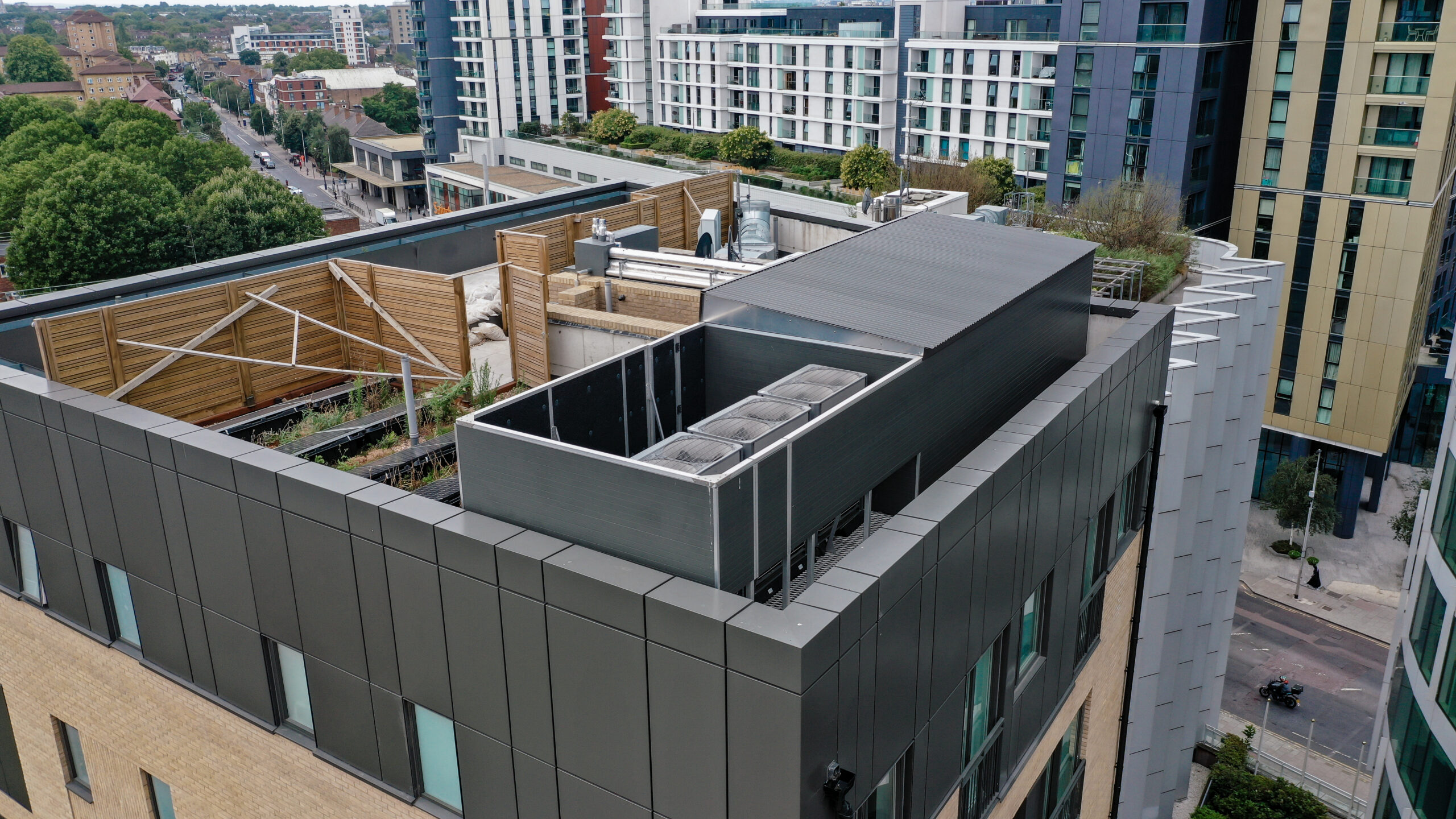

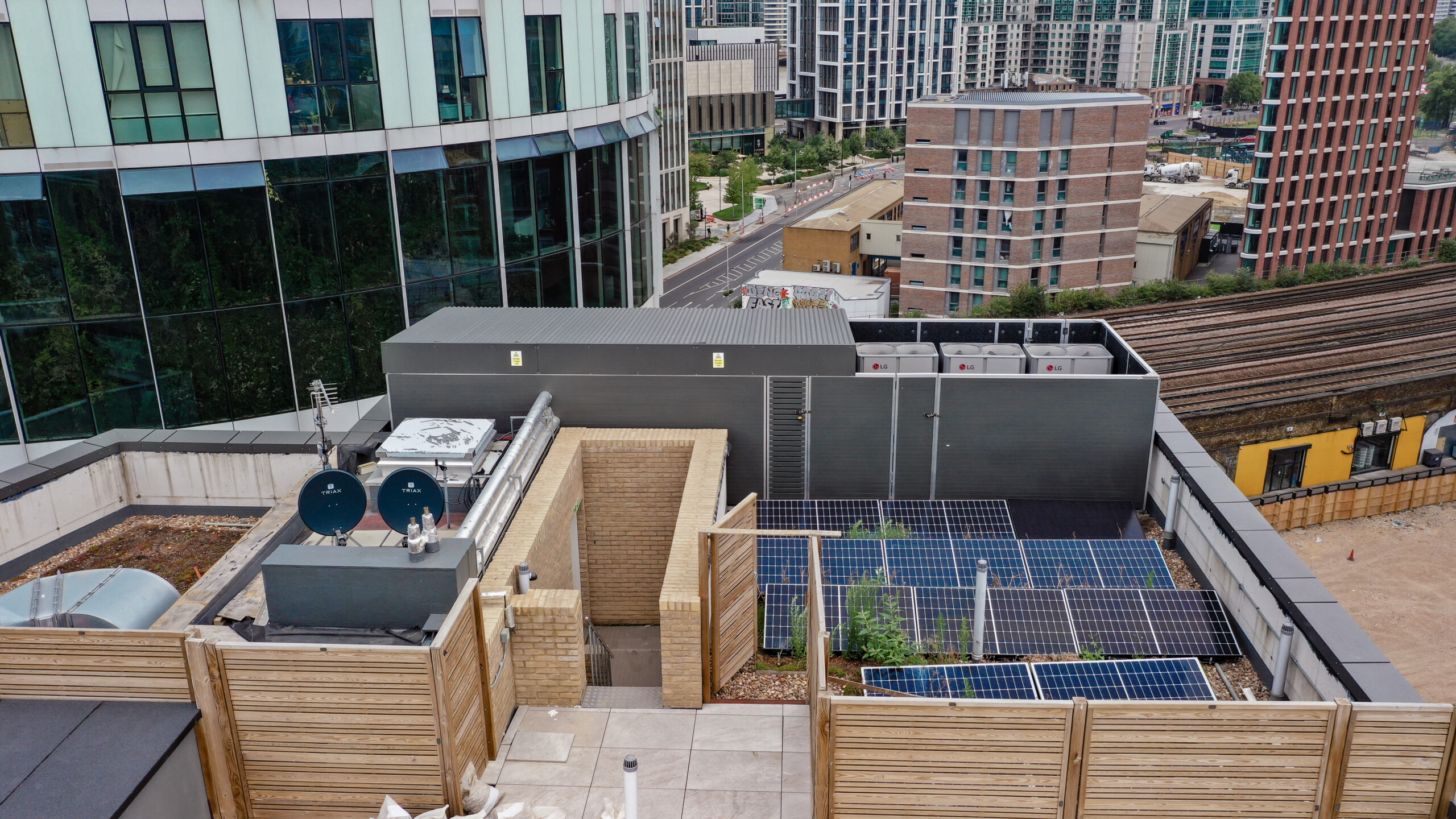

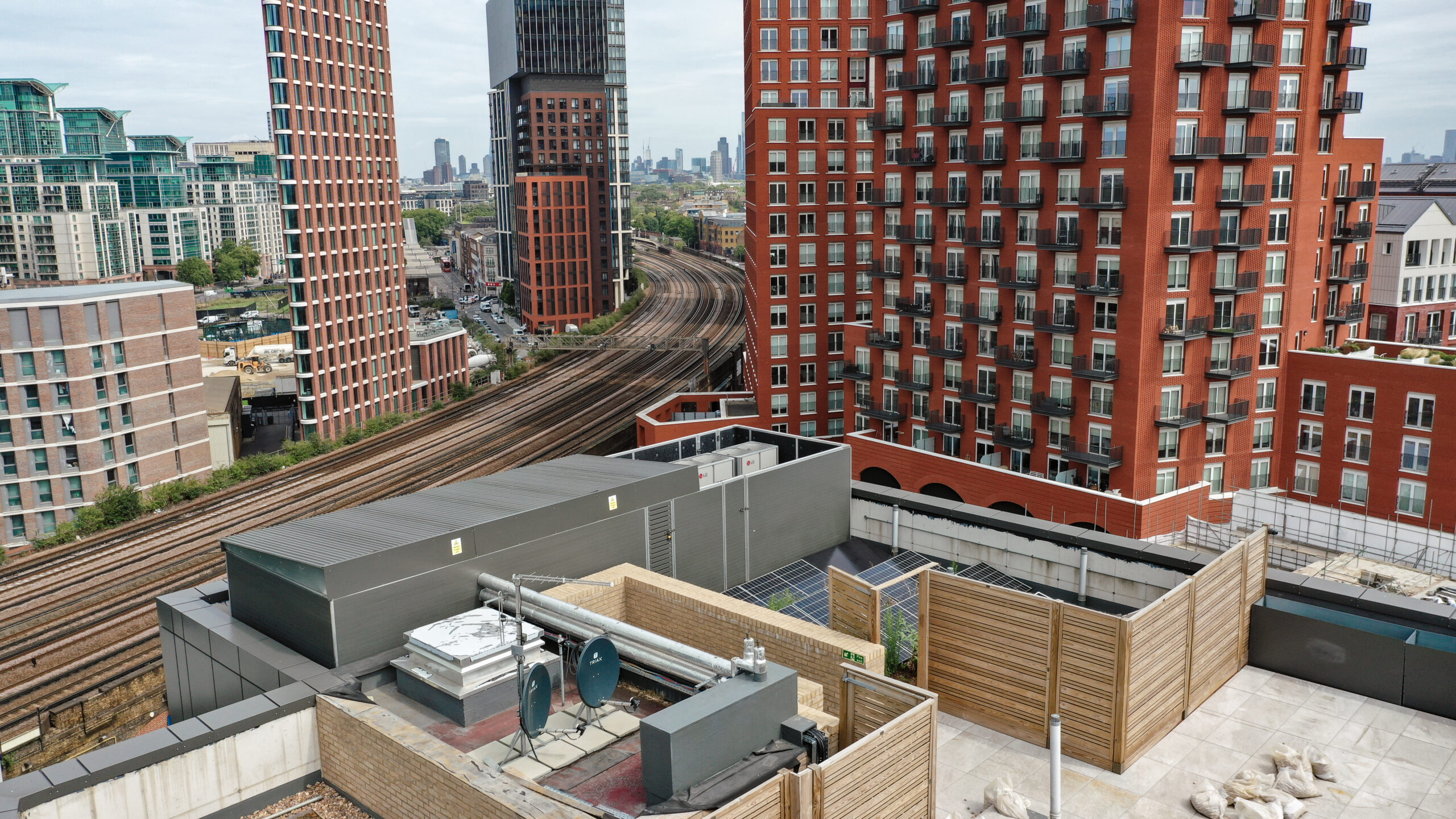

The platform incorporated Peacemaker acoustic screens to provide effective noise attenuation while allowing essential airflow for air conditioning condensers, ensuring they operated efficiently without exceeding noise limits. Simultaneously, a watertight enclosure was achieved using standard screens installed with no gaps, paired with a roof over the enclosed section to protect other sensitive equipment from weather exposure. This integrated solution provided both ventilation and environmental protection within a single cohesive structure.
Key features
– Series 1 platform for a secure, non-penetrating rooftop solution

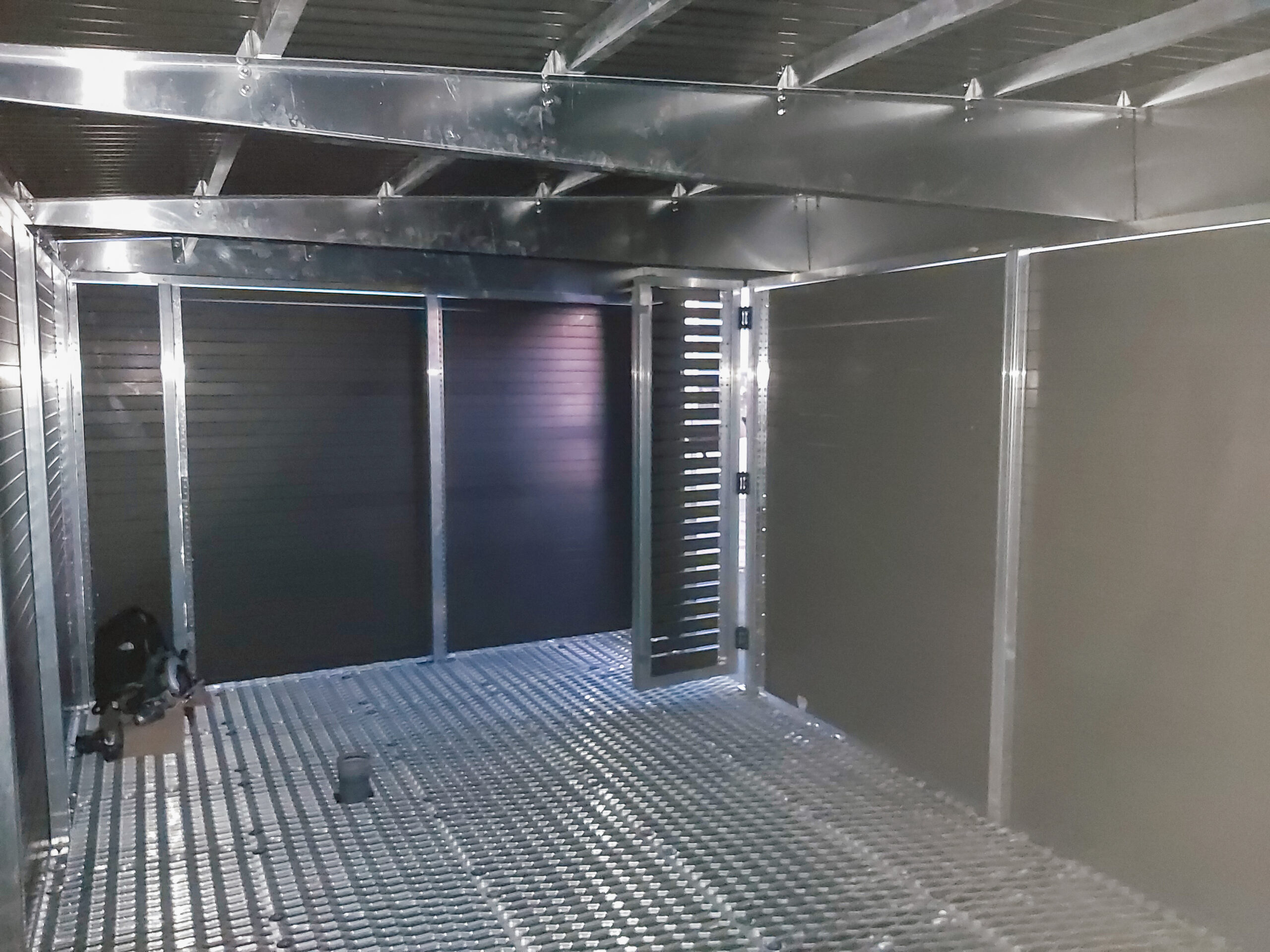

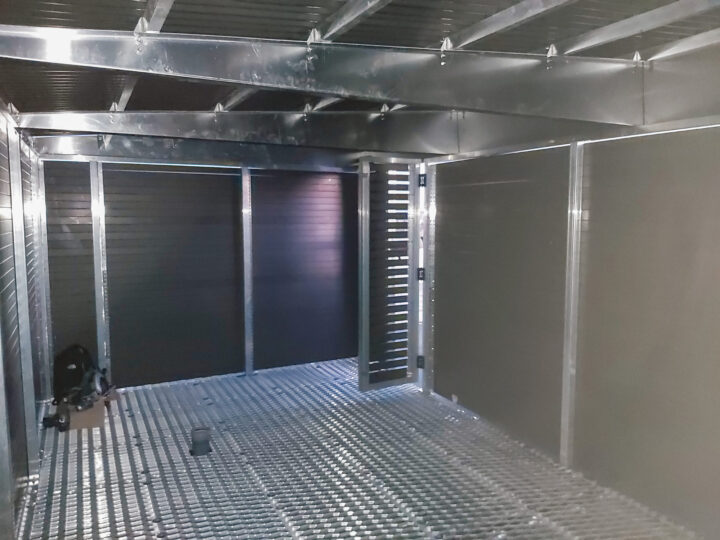

– Standard Screen with a no gap configuration for enclosing and protecting equipment
– Roof for creating a watertight enclosure for equipment requirements
– Peacemaker screens for effectively attenuating sound
– Conforms to BS EN 516 2006 and BS EN 1090-3 2008
Installation

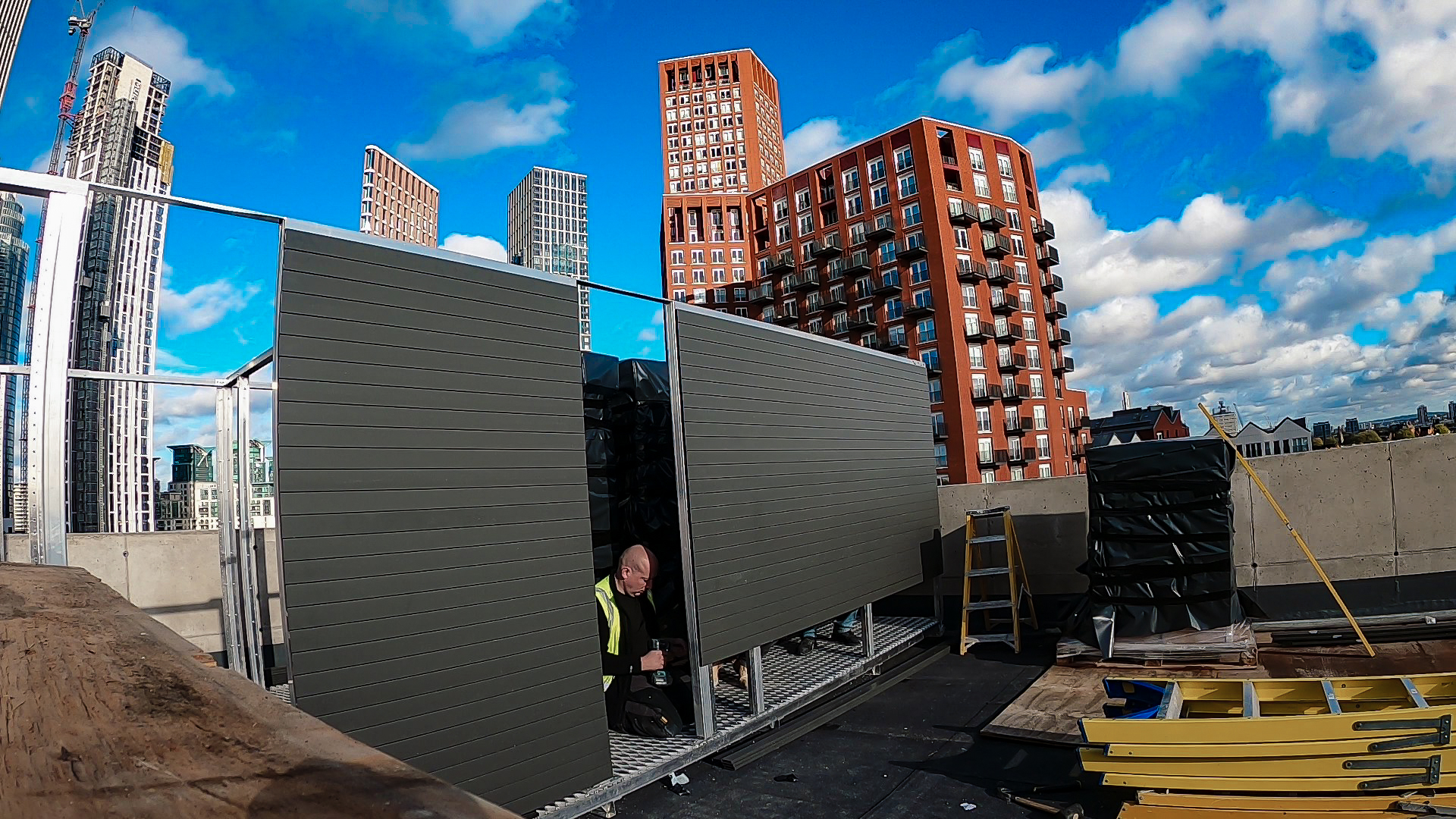

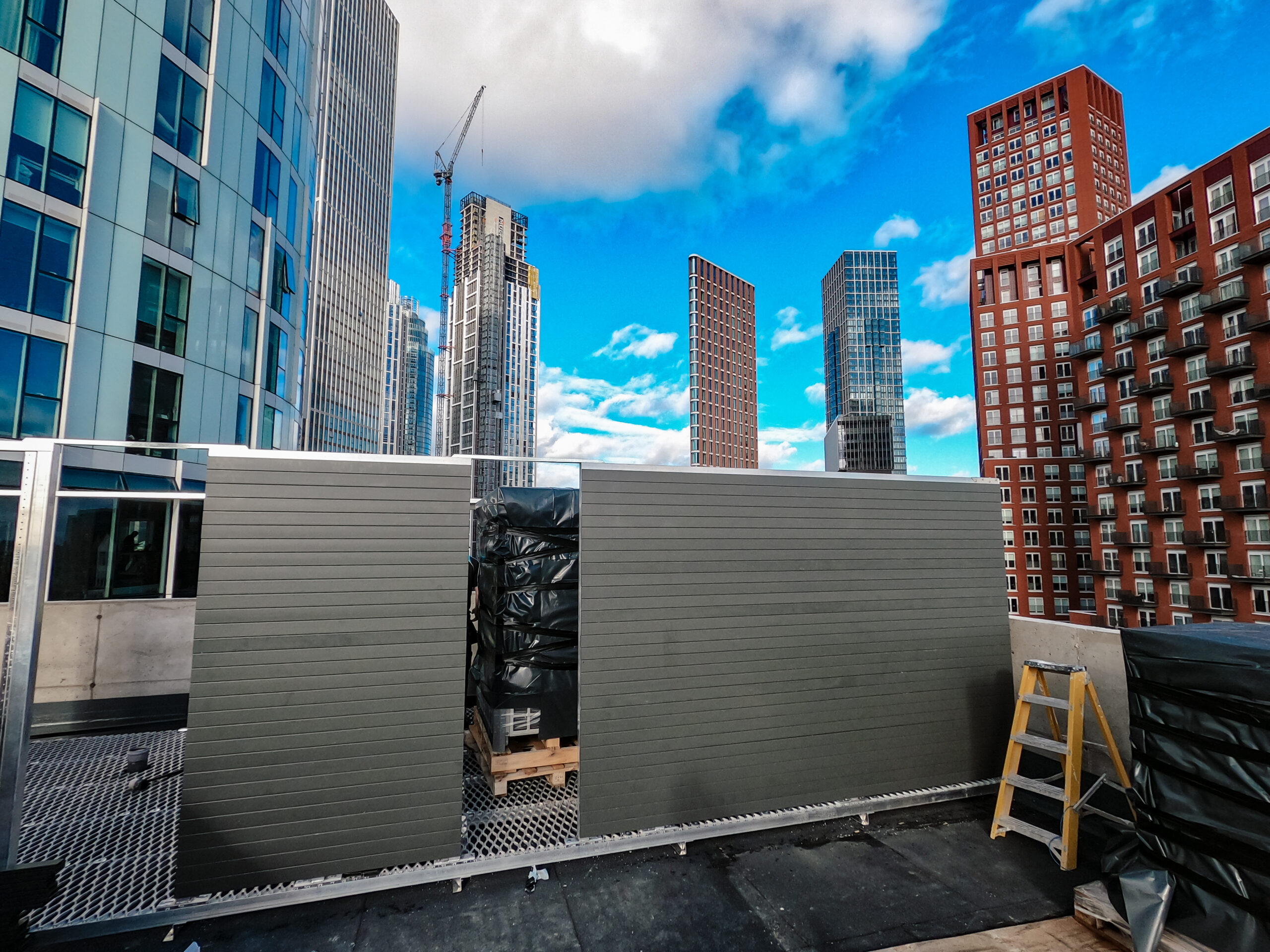

This complete structure was fully assembled in 2 days. Due to heavy congestion and limited access around the building, traditional lifting methods such as crane access were not feasible without incurring costly road closures. To overcome this, all materials were transported to the rooftop via a materials hoist, which allowed for uninterrupted site operations and minimized disruption to surrounding areas. The freestanding nature of the Series 1 Platform eliminated the need for heavy structural works or roof penetrations, allowing for a fast, clean, and safe setup.
