Fixed screen system.

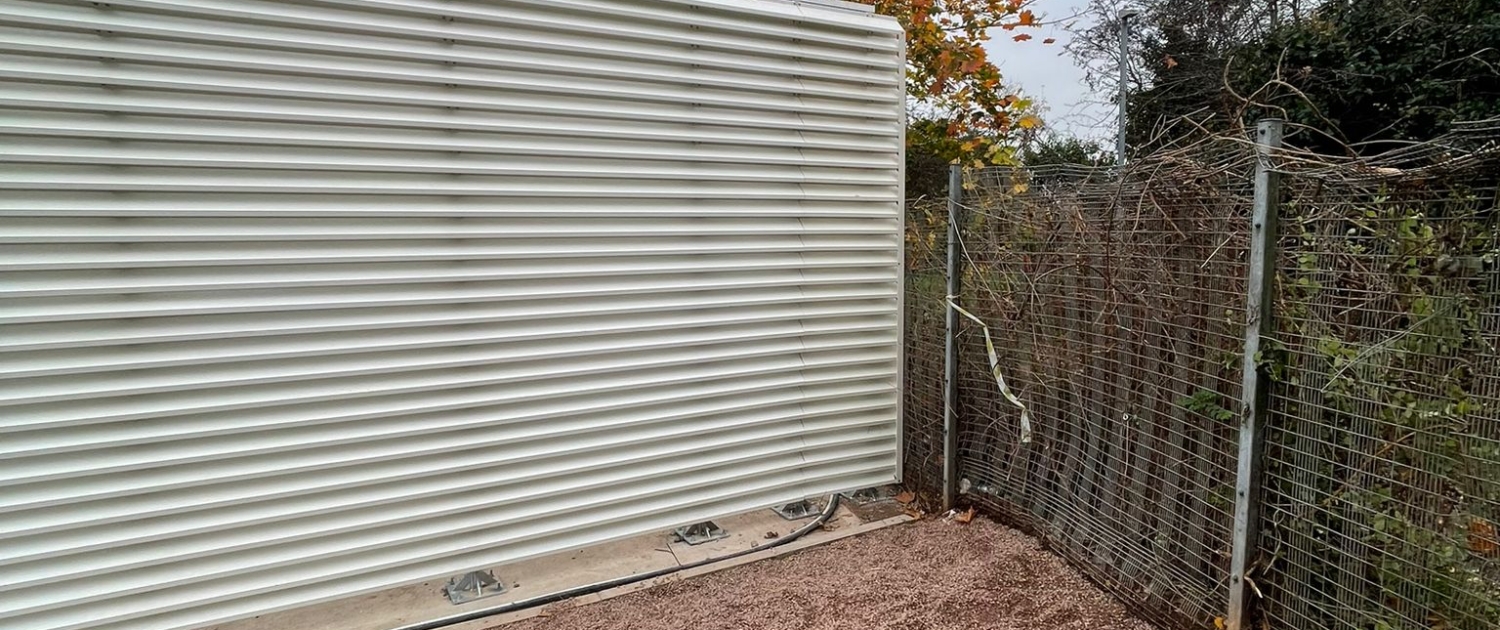

  • Screen system suitable for fixing to varied surfaces including roofing or a concrete cast slab at ground level.
  • The Boltscreen system can be fixed to an isolated independant concrete plinth on a roof providing a non-penetrating solution.
  • The Boltscreen system can incorporate any surround type from our range including slatted, louvre screening or acoustic properties.


  • Available in height and length to suit site survey requirements.
  • Boltscreen is able to be installed on warm roof buildup situations with a 1st fix post foot which is fixed to the structure before the insulation is in place.
  • Complements our plant platform range perfectly and can be integrated so that screens connect seamlessly regardless whether the other screen sections are mounted on a platform or on the Boltscreen system.
  • The Boltscreen system is available with three types of brackets to suit varied applications.
  • Galvinized steel or aluminium components with stainless steel fixings – backed by a 20 year warranty.
  • Designed according to EN 1991-1-4:2005+A1:2010 Section 7.4.1 and complies to BS EN 516 2006 and BS EN 1090-3 2008


  • The screen system benefits from a short lead time for manufacture and is quick to install on site.
  • Supplied in kit form with all fixings, site specific drawings and instructions.
  • Take advantage of our approved installer network for an efficient and stress-free installation.

Specification Requirements

  • Boltscreen system by Configured Platforms Ltd
  • Height of screen and screen type.
  • Type of fixing surface.
  • Length of screen or dimensions if it is to form and enclosure.
  • Position or quantity of access doors or gaps if required.

Screen Type Choice

Each of the surround options used on our platforms can be applied to the Parascreen system.

  • Guardrail – To create a safe area for service personnel.
  • Standard Screen – For aesthetic screening of plant, equipment and/or ductwork.

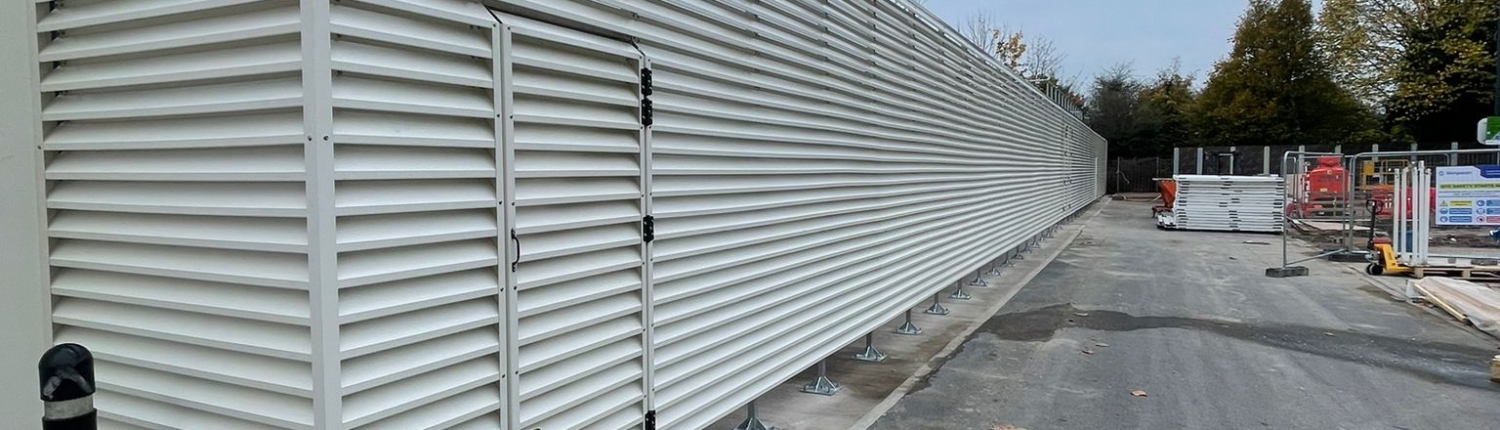

  • Louver100 – For aesthetic louver screening of the plant, equipment and ductwork providing airflow.
  • Soundshield – For aesthetic screening and acoustic attenuation by reflection.
  • Peacemaker – For aesthetic screening and acoustic attenuation by absorption.
  • Acoustic+ – For aesthetic screening and acoustic attenuation by reflection and absorption.
